EMI Receiver: 9010F – The 9010F from Narda Safety Test Solutions / PMM is a high-performance FFT EMI receiver designed for fast and accurate electromagnetic emission measurements. The base instrument covers a frequency range from 10 Hz to 30 MHz and provides full compliance with CISPR 16-1-1 from 9 kHz to 30 MHz.

Combining direct analog-to-digital conversion, advanced digital signal processing and ultra-fast FFT spectrum analysis, the 9010F significantly reduces measurement times compared with conventional stepped-frequency EMI receivers. Its gapless FFT acquisition supports the analysis of time-varying and intermittent electromagnetic disturbances.

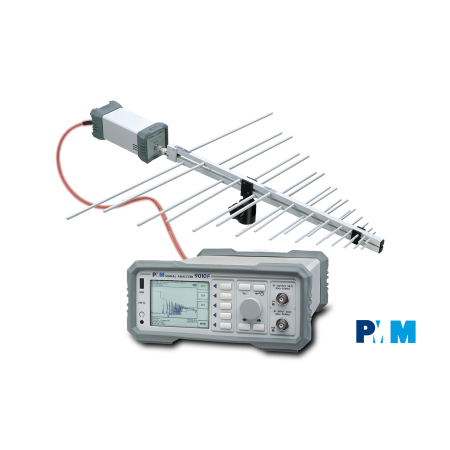

With the optional external full-compliance extension units 9030, 9060 and 9180, the measurement range can be extended up to 18 GHz. Connected through a high-speed fiber-optic interface, these modules make the 9010F a flexible platform for advanced EMC measurement systems in testing and development laboratories.

Advantages

• Full-compliance EMI measurements according to CISPR 16-1-1 from 9 kHz to 30 MHz
• Ultra-fast FFT spectrum analysis for significantly reduced measurement times
• Frequency expansion up to 18 GHz using optional external full-compliance receiver modules
• Gapless FFT data acquisition for analyzing time-varying electromagnetic disturbances
• Direct analog-to-digital conversion with advanced digital signal processing
• Integrated preselector and switchable preamplifier for demanding measurement conditions
• Simultaneous measurement detectors for efficient emission analysis
• Support for CISPR and MIL-STD measurement functions
• Compact and rugged design for laboratory and on-site measurements
• Rechargeable Li-Ion battery operation for portable use
• High-speed fiber-optic connection to external receiver modules
• PMM Emission Suite (PES) software for measurement control, evaluation and reporting

Key Features

• Base receiver frequency range: 10 Hz to 30 MHz
• Full-compliance frequency range: 9 kHz to 30 MHz according to CISPR 16-1-1
• Extended frequency range: up to 18 GHz with external receiver units
• Measurement technology: FFT spectrum analysis and conventional sweep mode
• Direct analog-to-digital conversion and digital signal processing using DSP and FPGA technology
• Frequency resolution: 0.1 Hz
• Frequency accuracy: better than 1 ppm
• RF input: 50 Ohm, BNC female connector
• RF input attenuation: 0 to 35 dB in 5 dB steps
• Switchable 20 dB preamplifier and integrated RF preselector
• Integrated switchable pulse limiter
• Measurement detectors: Peak, Quasi-Peak, Average and RMS; additional detector functions depending on configuration
• CISPR measurement bandwidths: 200 Hz and 9 kHz in the base receiver
• 120 kHz and 1 MHz measurement bandwidths with suitable external extension modules
• Additional measurement bandwidths for MIL-STD-461 applications
• Maximum RF input level without damage: 137 dBµV (1 W) with at least 10 dB input attenuation
• Integrated reference signal generator
• Interfaces: USB, RS-232, high-speed fiber-optic interface and User Port
• Control of compatible external LISNs and measurement system components
• Power supply: 10 to 15 V DC or rechargeable Li-Ion battery
• Dimensions: 235 × 105 × 335 mm
• Weight: approximately 4.3 kg

Typical Applications

• Full-compliance conducted emission measurements using suitable external LISNs
• Full-compliance radiated emission testing with external frequency extension modules
• EMC measurements according to CISPR 16-1-1 in certification and test laboratories
• EMC pre-compliance testing during electronic product development
• Analysis of time-varying and intermittent electromagnetic interference
• Electromagnetic interference diagnostics and troubleshooting
• EMC testing for industrial, commercial and military applications
• Measurements in anechoic chambers and open-area test sites
• EMC quality assurance in research, development and production environments
• Automated emission measurements and test data analysis using PMM Emission Suite

Additional Information

The 9010F serves as the core of a modular full-compliance EMC measurement system. While the base receiver covers 10 Hz to 30 MHz, external measurement modules provide full-compliance operation at higher frequencies.

The 9030 extends the frequency range from 30 MHz to 3 GHz, the 9060 covers 30 MHz to 6 GHz and the 9180 provides measurements from 6 GHz to 18 GHz. Continuous frequency coverage up to 18 GHz therefore requires a suitable extension covering 30 MHz to 6 GHz in addition to the 9180.

The external receiver units are connected to the 9010F through a high-speed fiber-optic interface. This arrangement allows the RF measurement unit to be positioned away from the main receiver and reduces the need for long RF cable runs.

Conducted emission testing requires a suitable external LISN. The PMM Emission Suite supports measurement system control, test data evaluation and results documentation.

EMCO Elektronik provides technical consultation and support for selecting appropriate frequency extension modules, configuring full EMC measurement systems and integrating the 9010F into existing laboratory environments.
