EMI Click Analyzer - Four-channels with integrated LISN and full CISPR calibrator: CA0010 | NARDA SAFETY TEST SOLUTIONS
Narda CA0010 four-channel EMI Click Analyzer with integrated 16 A LISN and CISPR calibrator for conducted EMC compliance testing.

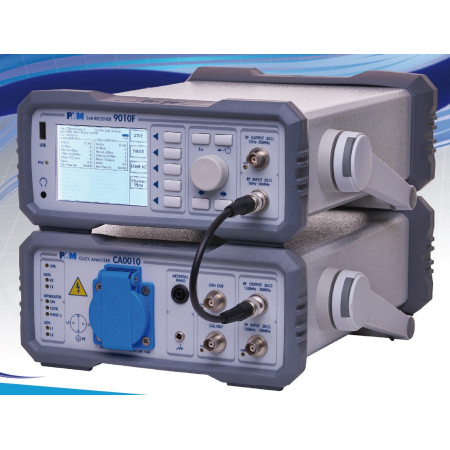

The innovative CA0010 is the full compliance Click Analyzer with integrated 16 A LISN and CISPR calibrator, a companion for the 9010F, ER8000 and ER9000 EMI FFT receivers.
The CA0010 can make four simultaneous measurements at 150 kHz, 500 kHz, 1.4 MHz and 30 MHz and can work as a standalone setup for compliance tests. The user can set all the click-relevant parameters, such as their amplitude, duration, spacing, number, repetitions and, last but not least, the amplitude of CISPR pulses.
Benefits
- Simultaneous measurement on four independent frequency channels
- Integrated 16 A LISN for conducted disturbance measurements
- Built-in CISPR calibrator for generating click sequences and CISPR pulses
- Supports EMC compliance testing according to CISPR 14-1 and CISPR 16-1-1
- Reduces test setup complexity by combining multiple functions in one instrument
- Detailed analysis and evaluation using dedicated PC software
- Compatible with external LISNs for additional measurement configurations
Key Features
- Four measurement frequencies: 150 kHz, 500 kHz, 1.4 MHz and 30 MHz
- Four independent channels with integrated preselectors, attenuators and preamplifiers
- Built-in single-phase LISN: 16 A, 150 kHz to 30 MHz
- Integrated switching operation counter with adjustable current threshold
- Built-in click generator and CISPR pulse calibrator
- Time resolution: 500 µs for recorded click analysis
- Maximum RF input level: 140 dBµV (2 W) without damage
- PCA (PMM Click Analyzer) software for detailed measurement analysis
- PCG (PMM Click Generator) software for generating CISPR test sequences
- Operation in combination with compatible PMM EMI receivers, including the 9010F, ER8000 and ER9000
Typical Applications
- Measurement of discontinuous conducted disturbances (clicks)
- CISPR 14-1 compliance testing of electrical and electronic equipment
- Analysis of interference generated by relays, switches and other switching components
- Verification and calibration of click measurement systems
- Conducted emission measurements using the integrated LISN
- EMC research, development and troubleshooting
- Automated click analysis and test reporting
Additional Information
The CA0010 is designed for use with compatible PMM EMI receivers. Its integrated LISN, click generator and CISPR calibrator support comprehensive discontinuous disturbance testing without requiring separate equipment for these functions.
EMCO Elektronik provides technical advice and support for selecting and integrating Narda / PMM measurement solutions into EMC test environments.
