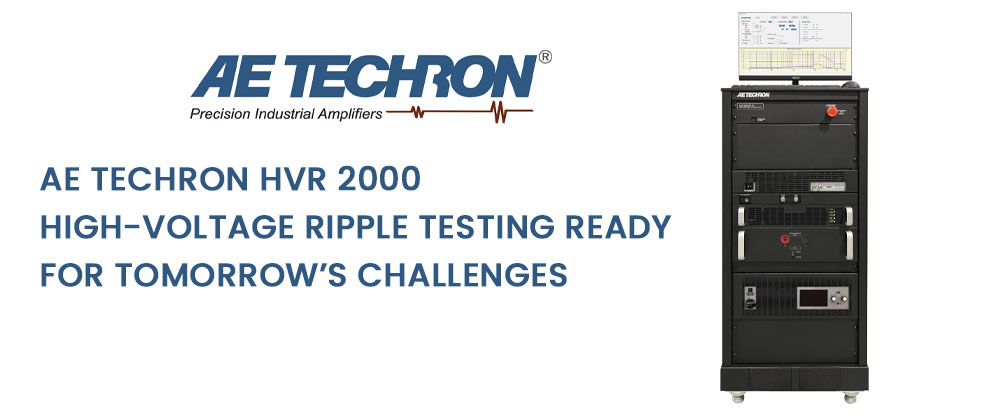

AE Techron HVR 2000: High-Voltage Ripple Testing Ready for Tomorrow’s Challenges

The need for high-voltage ripple testing continues to grow, especially in electromobility, power electronics, and advanced automotive qualification. With the launch of the HVR 2000, AE Techron expands its proven HVR platform and raises the bar for realistic, standards-aligned ripple test scenarios.

Double the Voltage on a Proven Platform

Building on the established HVR 1000 foundation, the HVR 2000 doubles the available output voltage to up to 2000 Vp. This provides test engineers with more headroom and flexibility to accurately reproduce real-world ripple conditions in demanding high-voltage environments—without compromising signal quality, current capability, or usability.

Key Technical Capabilities for Advanced Test Scenarios

Designed for higher ripple voltages, the HVR 2000 combines power, bandwidth, and configurable limits to match modern validation requirements:

• Up to 2000 V peak output voltage
• Ripple bandwidth from 10 Hz to 200 kHz
• Up to 60 kW DC power with 160 A continuous current
• Bidirectional DC operation with programmable voltage, current, and power limits
• Support for standards such as ISO 21498-2, MBN LV123, Stellantis CS.00245, and more

Three Configurations to Match Your Test Strategy

The HVR 2000 is available in three model variants to match different integration levels and test approaches:

• HVR 2000RG: High-Voltage Ripple Generator System
• HVR 2000CS-15: High-Voltage Ripple Complete Test System
• HVR 2000CS-30: High-Voltage Ripple Complete Test System

Local Support for Germany and Austria

EMCO Elektronik GmbH is the local point of contact in Germany and Austria for AE Techron products, supporting system selection, integration, and commissioning—helping teams achieve repeatable results and robust high-voltage ripple test workflows.
