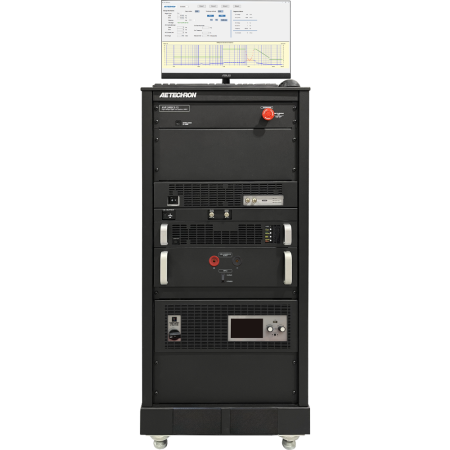

High-Voltage Ripple Test System up to 2000 V for Automotive & EV Validation: AE Techron HVR 2000 | AE Techron

The HVR 2000 from AE Techron is a powerful high-voltage ripple test system designed to meet demanding automotive and aviation test requirements. It enables accurate and repeatable ripple testing of high-voltage components and supports immunity assessment under realistic operating conditions.

Advantages :

The HVR 2000 focuses on standards compliance, ease of use, and operational safety. Its rugged design minimizes training time and downtime while providing comprehensive protection for both the user and the device under test.

• Easy-to-use software reducing training time
• Multi-layer current protection
• High system uptime
• Customizable test modifications
• No recurring license fees
• Small in-lab footprint

Key Features :

AC Ripple

• Frequency range: 10 Hz to 200 kHz
• Amplitude: up to 50 Vp
• Current: up to 60 Ap
• Adjustable ripple current limit

DC

• Output voltage: 0 to 2000 V
• Power: up to 60 kW
• Current: up to 80 A DC
• Adjustable current and power limits
• Bidirectional 2-quadrant DC operation

Typical Applications :

• High-voltage ripple testing for automotive components
• EV and HEV system validation
• Standards-compliant qualification and immunity testing
• High-voltage power electronics testing

Standards & Test Profiles :

• MBN LV123
• ISO 21498-2
• MAN CVS 43:2021-01
• VW 80300
• VW 80303
• Stellantis CS.00245

System Versions :

• HVR 2000CS – Complete high-voltage ripple test system with integrated DC supply
• HVR 2000RG – High-voltage ripple generator system without DC supply, compatible with customer DC sources
