Microstrip RF Isolators – 5 to 37 GHz | JQL Electronics / Dorado
JQL Microstrip RF isolators from 5 to 37 GHz with model-dependent isolation, insertion loss, VSWR and power for professional RF and microwave applications.

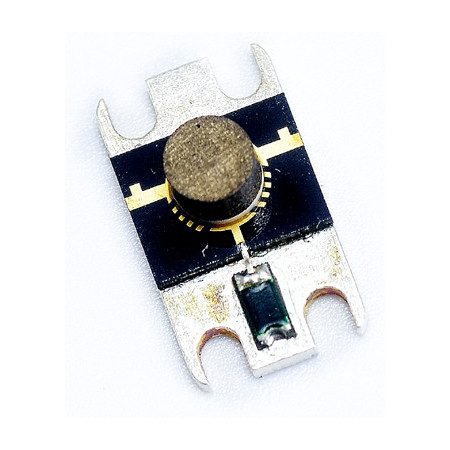

The JQL Technologies Microstrip RF Isolators are passive non-reciprocal RF components for directional signal transmission and isolation in RF and microwave systems. The currently listed product range covers frequencies from 5 to 37 GHz.
Available models differ in terms of frequency band, isolation, insertion loss, VSWR and power. A large proportion of the listed configurations are specified for Full bandwidth.
Advantages
- Wide microwave frequency coverage: currently listed models from 5 to 37 GHz.
- Multiple frequency configurations: versions covering different radar, radio-link, SatCom and wireless bands.
- Isolation: model-dependent values, reaching 30 dB on a selected configuration.
- Insertion loss: values starting from 0.50 dB on multiple listed models.
- Full-band configurations: specified across a large part of the product family.
- Multiple power configurations: model-dependent forward/reverse power ratings.
- Custom design: JQL supports configurations according to Type, Frequency Band, Insertion Loss, Rejection and Isolation requirements.
Key features
- Product type: Microstrip RF Isolator
- Frequency range of currently listed models: 5 to 37 GHz
- Bandwidth: predominantly Full, depending on model
- Isolation: model dependent
- Insertion loss: model dependent
- VSWR: model dependent
- Average power: model dependent
Typical applications
- DAS – Distributed Antenna Systems
- Public safety radio systems
- Radar
- Radio links
- SatCom
- Wireless communication systems
Additional information
The JQL Microstrip RF Isolator portfolio includes numerous frequency-specific configurations covering different microwave bands. Model selection can be based on frequency band, isolation, insertion loss, VSWR and power requirements.
Selected references provide different signal-path specifications or are listed by JQL as separate variants of the same reference. These entries are therefore retained separately in the following model comparison according to the published data.
Model comparison
View models from 5 to below 8 GHz
| Part Number | Band (GHz) | Bandwidth | Isolation | Insertion Loss | VSWR | Avg Power |
|---|---|---|---|---|---|---|
| JIS5000T6000G1 | 5.000~6.000 | Full | 18.0 | 0.50 | 1.28 | 10/10/- |
| JIS5600T7400G1 | 5.600~7.400 | Full | 20 | 0.50 | 1.28 | 10/10 |
| JISC6500T9600-10 | 6.500~9.600 | Full | 16.6 | 0.6 | ||
| 2IMC-8.0-1-8.05BW38.51W1 | 6.500~9.600 | Full | 16.6 | 0.6 | ||
| JIS7000T7500G0 | 7.000~7.500 | Full | 20 | 0.50 | 1.25 | 5/0.5 |
View models from 8 to below 12 GHz
| Part Number | Band (GHz) | Bandwidth | Isolation | Insertion Loss | VSWR | Avg Power |
|---|---|---|---|---|---|---|
| 2W8NK-1 | 8.500~9.600 | Full | 20.0 | 0.5 | 1 | |
| JIS8500T9500G0 | 8.500~9.500 | Full | 19 | 0.50 | 1.25 | 5/0.5 |
| JIS8800T10K1G0 | 8.800~10.10 | Full | 20 | 0.50 | 1.25 | 5/0.5 |
| JIS8800T9800G0 | 8.800~9.800 | Full | 19 | 0.50 | 1.25 | 5/0.5 |
| JIS9000T10K0G0 | 9.000~10.00 | Full | 18 | 0.50 | 1.28 | 5/0.5 |
| JIS9200T9900G1 | 9.200~9.900 | Full | 19 | 0.50 | 1.25 | 10/10 |
| JIS10K0T11K5G0L | 10.00~11.50 | Full | 20 | 0.50 | 1.25 | 10/1 |
| JIS10K1T11K0G2R | 10.00~11.00 | Full | 18 | 0.50 | 1.28 | 20/20 |
| JIS10K4T11K3G1 | 10.40~11.30 | Full | 18 | 0.60 | 1.30 | 10/10 |
| JIS11K9T12K2G0 | 11.90~12.20 | Full | 20 | 0.50 | 1.25 | 5/0.5 |
View models from 13 to below 18 GHz
| Part Number | Band (GHz) | Bandwidth | Isolation | Insertion Loss | VSWR | Avg Power |
|---|---|---|---|---|---|---|
| 2IMC-14-1-BW14.29 | 13.000~15.000 | Full | 20 | 0.6 | 2 | |
| JIS13K2T15K0G0 | 13.20~15.00 | Full | 16 | 0.70 | 1.30 | 1/0.5 |
| JIS13K5T14K75G0 | 13.50~14.75 | Full | 16 | 0.70 | 1.30 | 1/1 |
| JIS14K0T15K0G0 | 14.00~15.00 | Full | 19 | 0.50 | 1.30 | 5/0.5 |
| JISC14K0T17K0-10 | 14.000~17.000 | Full | 18.0 | 0.7 | 2 | |
| 2IMC-15.75-1-15.5BW19.35 | 14.000~17.000 | Full | 18.0 | 0.7 | 2 | |
| 2IMC-14.8-1TS-15.05BW7.31 | 14.500~15.600 | Full | 20.0 | 0.50 | 10/1/- | |
| JIS18K0T20K0G0 | 15.00~17.50 | Full | 17 | 0.80 | 1.38 | 1/1 |
| JIS15K0T17K5G1 | 15.00~17.50 | Full | 17.0 | 0.70 | 1.30 | 10/10/- |
| JC2S15K7T17K7G1 | 15.700~17.700 | 18 Min (2->1) ; 30 Min (3->2) | 0.6 Max (1->2) ; 1.1 Max (2->3) | 10 | ||
| JIS16K0T17K0G1 | 16.00~17.00 | Full | 19 | 0.60 | 1.30 | 10/10 |
| JIS16K5T17K5G0 | 16.50~17.50 | Full | 18 | 0.60 | 1.35 | 1/1 |
| 2IMC-18-2BW11.11W3FM | 17.000~19.000 | Full | 17.0 | 0.9 | 4 | |
| JISM17K3T17K5-6-A | 17.300~17.480 | Full | 20.0 | 0.7 | 2 | |
| JISM17K3T17K5-6-B | 17.300~17.480 | Full | 20.0 | 0.7 | 2 |
View models from 24.5 GHz
| Part Number | Band (GHz) | Bandwidth | Isolation | Insertion Loss | VSWR | Avg Power |
|---|---|---|---|---|---|---|
| JIS24K5T28K4G0 | 24.50~28.35 | Full | 18 | 1.20 | 1.40 | 0.5/0.5 |
| 2IMC-26.0-1-26.25BW5.7W4FM | 25.500~27.000 | Full | 18.0 | 0.9 | 4 | |
| JIS27K0T30K0G0 | 27.00~31.00 | Full | 15 | 1.20 | 1.40 | 1/1 |
| JISM27K0T31K0 | 27.00~31.00 | Full | 19 | 1.30 | 1.32 | 1/0.5 |
| JISM27K0T31K0 | 27.000~31.000 | Full | 19.0 | 1.3 | 1 | |
| JIS27K0T31K0G0 | 27.00~31.00 | Full | 15 | 1.20 | 1.40 | 0.5/0.5 |
| JIS29K6T30K6G0 | 29.60~30.60 | Full | 15.6 | 1.20 | 2 | |
| JIS30K5T31K3G0 | 30.50~31.30 | Full | 18 | 1.00 | 1.40 | 0.5/0.5 |
| JIS33K5T34K5G0 | 33.50~34.50 | Full | 17 | 1.20 | 1.40 | 0.5/0.5 |
| 4IMS35-1C-OEM | 34.000~36.000 | Full | 20.0 | 1.0 | 2/-/- | |
| JIS34K5T35K6G0 | 34.50~35.60 | Full | 15.6 | 1.20 | 1.40 | 2 |
| JIS34K5T35K6G0C | 34.50~35.60 | 19.0 | 1.20 | 1.35 | 2 | |
| 4IMM36-3 | 35.0~37.0 | Full | 20.0 | 0.9 | 2 |
