Waveguide adapters – WR137 to WR28, up to 40 GHz | JQL Electronics / Dorado
JQL waveguide adapters from 5.85 to 40 GHz for WR137 to WR28 with SMA, N and K connectors and straight or 90° launcher configurations.

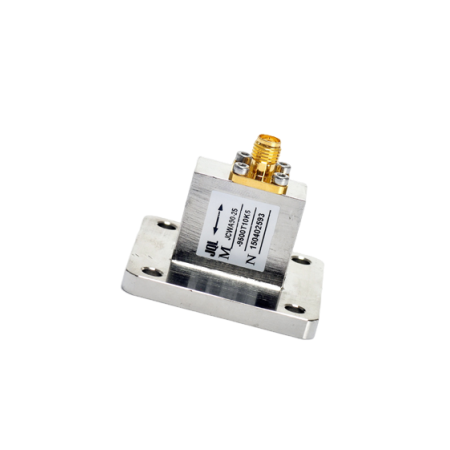

The JQL Technologies Waveguide Adapters include multiple adapter solutions for waveguide, RF and microwave systems. The listed models cover frequencies from 5.85 to 40 GHz and multiple waveguide sizes from WR137 through WR28.
Depending on the version, different RF interfaces and mechanical configurations are available. The product family includes models with SMA, N and K connectors as well as straight and 90° launcher configurations.
Advantages
- Wide frequency coverage: listed models from 5.85 to 40 GHz.
- Multiple waveguide sizes: versions for WR137, WR112, PDR84, WR90, WR75, WR62, WR42 and WR28.
- Different RF interfaces: SMA, N and K configurations on the corresponding specified models.
- Flexible launcher configurations: straight and 90° versions available.
- VSWR: model-dependent values from 1.20 to 1.80 within the listed range.
- Custom design: JQL provides custom configurations according to the required RF parameters.
Key features
- Product type: waveguide adapter
- Frequency range of listed models: 5.85 to 40 GHz
- Waveguide sizes: WR137, WR112, PDR84, WR90, WR75, WR62, WR42 and WR28
- Connector options: SMA, N and K on the corresponding specified models
- Launcher: straight or 90 degree on selected models
- VSWR: model dependent
Typical applications
- DAS – Distributed Antenna Systems
- Public safety radio systems
- Radar
- Radio links
- SatCom
- Wireless communication systems
Additional information
The JQL Waveguide Adapter product family includes multiple models for different waveguide sizes, frequency ranges and interface configurations. Several JAC models provide female connectors as the default interface with corresponding male versions available as options.
The range includes both full-band configurations and models covering specific frequency ranges. Depending on the model, straight or 90° launchers and different coaxial connector configurations are available.
Model comparison
| Part Number | Frequency Range (GHz) | VSWR | Default Connector | Optional Connector | Launcher |
|---|---|---|---|---|---|
| JISO-WR137-5850T7025SM5 | 5.850–7.025 | 1.20 | |||
| JACWR112NF | 7.05–10.00 | 1.2 | N-f | N-m | 90 Degree |
| JACWR112SF-PDR84 | 7.05–10.00 | 1.25 | SMA-f | SMA-m | 90 Degree |
| JACWR112SF | 7.05–10.00 | 1.2 | SMA-f | SMA-m | 90 Degree |
| JACWR112SF-7800T7930 | 7.800–7.930 | 1.20 | SMA-f | SMA-m | Straight |
| JFAD7900T8400WR112 | 7.9–8.4 | 1.26 | N Female | ||
| JWA112-8.0T8.4NF | 8.0–8.4 | 1.25 | N Female | ||
| JACWR90SF | 8.20–12.40 | 1.2 | SMA-f | SMA-m | 90 Degree |
| JACWR90NF | 8.20–12.40 | 1.2 | N-f | N-m | 90 Degree |
| JCWR90-25-9200T10K2 | 9.20–10.20 | 1.2 | SMA-f | SMA-m | Straight |
| JWA75-NF | 9.84–15.0 | 1.25 | FBP120 (UBR120) | ||
| JACWR75SF | 10.00–15.00 | 1.2 | SMA-f | SMA-m | 90 Degree |
| JACWR62SF | 12.00–18.00 | 1.2 | SMA-f | SMA-m | 90 Degree |
| JWA42-SF | 17.6–26.7 | 1.25 | FBP220 (UBR220) | ||
| JACWR42KF | 18.00–26.50 | 1.3 | K-f | K-m | 90 Degree |
| JACWR28K | 26.50–40.0 | 1.8 | K-f | K-m | 90 Degree |
| JACWR28K-29K0T33K0 | 29.00–33.00 | 1.20 | K-f | K-m | 90 Degree |
