Fixed high-power RF attenuators – SMA, up to 10 W and 18 GHz: BM10036 / BM10037 | Bracke Manufacturing
Bracke BM10036 and BM10037 fixed 50-ohm SMA attenuators with DC to 18 GHz operation, 5 or 10 W power ratings and attenuation values from 1 to 40 dB.

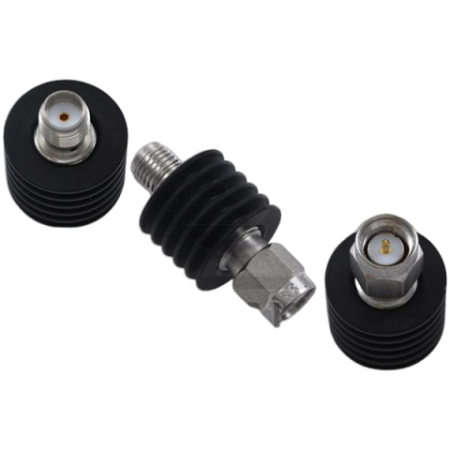

The Bracke BM10036 and BM10037 series consist of fixed coaxial high-power RF attenuators for 50-ohm signal paths with an SMA interface. Both series cover a frequency range from DC to 18 GHz.
The BM10036 series has a specified power rating of 5 W. The BM10037 series provides a higher power rating of 10 W over the same frequency range. Both series are available with fixed attenuation values of 1, 2, 3, 6, 10, 20, 30 and 40 dB.
Advantages
- Frequency range from DC to 18 GHz: For broadband RF and microwave signal paths.
- Two power classes: Choice of 5 or 10 W according to the required power rating.
- Eight fixed attenuation values: Versions from 1 to 40 dB.
- 50-ohm system impedance: For compatible coaxial RF components and measurement chains.
- SMA interface: For RF and microwave systems using this connector type.
- Defined RF parameters: Model-specific attenuation accuracy and specified maximum VSWR.
Key features
- Product type: Fixed coaxial high-power RF attenuator
- Manufacturer: Bracke
- Product series: BM10036 and BM10037
- Impedance: 50 ohms
- Interface: SMA
- Frequency range: DC to 18 GHz
- BM10036 power rating: 5 W
- BM10037 power rating: 10 W
- Attenuation values: 1, 2, 3, 6, 10, 20, 30 and 40 dB
- Attenuation accuracy: Model-dependent, from ±0.3 to ±1.5 dB
- BM10036 maximum VSWR: 1.35:1
- BM10037 maximum VSWR: 1.40:1
Typical applications
- Defined signal-level reduction in coaxial 50-ohm RF signal paths
- Level adjustment between RF sources, components and measurement instruments
- RF and microwave measurement setups up to 18 GHz
- Testing and characterisation of RF components and assemblies
- Integration into laboratory, development and production environments
- Signal conditioning in systems using SMA interfaces
Additional information
The appropriate series is selected according to the required power rating of 5 or 10 W. Within each series, the reference is selected according to the required attenuation value and permitted attenuation deviation. EMCO supports the technical product selection and integration of the attenuator into the complete RF or microwave measurement chain.
Model comparison – BM10036 series, 5 W
| Reference | Attenuation | Attenuation accuracy | Frequency range | Power rating | Max. VSWR |
|---|---|---|---|---|---|
| BM10036.1 | 1 dB | ±0.3 dB | DC to 18 GHz | 5 W | 1.35:1 |
| BM10036.2 | 2 dB | ±0.3 dB | DC to 18 GHz | 5 W | 1.35:1 |
| BM10036.3 | 3 dB | ±0.3 dB | DC to 18 GHz | 5 W | 1.35:1 |
| BM10036.6 | 6 dB | ±0.3 dB | DC to 18 GHz | 5 W | 1.35:1 |
| BM10036.10 | 10 dB | ±0.5 dB | DC to 18 GHz | 5 W | 1.35:1 |
| BM10036.20 | 20 dB | ±0.5 dB | DC to 18 GHz | 5 W | 1.35:1 |
| BM10036.30 | 30 dB | ±0.75 dB | DC to 18 GHz | 5 W | 1.35:1 |
| BM10036.40 | 40 dB | ±1.5 dB | DC to 18 GHz | 5 W | 1.35:1 |
Model comparison – BM10037 series, 10 W
| Reference | Attenuation | Attenuation accuracy | Frequency range | Power rating | Max. VSWR |
|---|---|---|---|---|---|
| BM10037.1 | 1 dB | ±0.5 dB | DC to 18 GHz | 10 W | 1.40:1 |
| BM10037.2 | 2 dB | ±0.5 dB | DC to 18 GHz | 10 W | 1.40:1 |
| BM10037.3 | 3 dB | ±0.5 dB | DC to 18 GHz | 10 W | 1.40:1 |
| BM10037.6 | 6 dB | ±0.5 dB | DC to 18 GHz | 10 W | 1.40:1 |
| BM10037.10 | 10 dB | ±0.7 dB | DC to 18 GHz | 10 W | 1.40:1 |
| BM10037.20 | 20 dB | ±0.7 dB | DC to 18 GHz | 10 W | 1.40:1 |
| BM10037.30 | 30 dB | ±1.0 dB | DC to 18 GHz | 10 W | 1.40:1 |
| BM10037.40 | 40 dB | ±1.0 dB | DC to 18 GHz | 10 W | 1.40:1 |
