Fixed RF attenuators – Mini-SMP, DC to 26.5 GHz: BM10088 series | Bracke Manufacturing

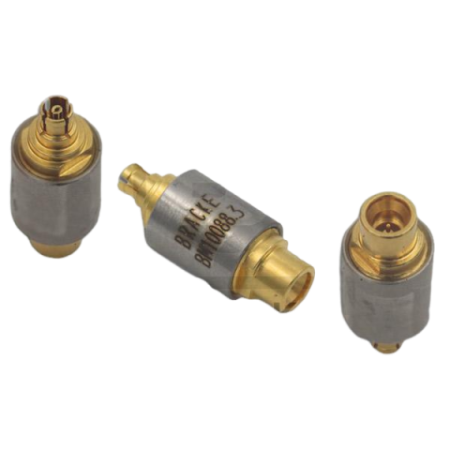

The Bracke BM10088 series consists of fixed coaxial RF attenuators for 50-ohm signal paths with a Mini-SMP interface. All models cover a frequency range from DC to 26.5 GHz and have a specified power rating of 2 W.

The series is available with fixed attenuation values of 3, 6, 10, 20 and 30 dB. Attenuation accuracy is ±0.8 or ±1.2 dB, depending on the selected model. A maximum VSWR of 1.50:1 is specified for every listed version.

Advantages

• Broad frequency range: Continuous operation from DC to 26.5 GHz.
• Mini-SMP interface: For compatible coaxial RF and microwave signal paths.
• Five fixed attenuation values: Choice of 3, 6, 10, 20 or 30 dB.
• 2 W power rating: Common specified RF power across all models.
• Defined attenuation accuracy: Model-specific values of ±0.8 or ±1.2 dB.
• Consistent maximum VSWR: 1.50:1 for every reference.

Key features

• Product type: Fixed coaxial RF attenuator
• Manufacturer: Bracke Manufacturing
• Product series: BM10088
• Impedance: 50 ohms
• Interface: Mini-SMP
• Frequency range: DC to 26.5 GHz
• Power rating: 2 W
• Attenuation values: 3, 6, 10, 20 and 30 dB
• Attenuation accuracy: ±0.8 or ±1.2 dB, depending on the model
• Maximum VSWR: 1.50:1

Typical applications

• Defined signal-level reduction in 50-ohm RF and microwave signal paths
• Level adjustment between RF sources, components and measurement instruments
• RF and microwave measurement setups up to 26.5 GHz
• Testing and characterisation of RF components and assemblies
• Integration into laboratory, development and production environments
• Signal conditioning in systems using Mini-SMP interfaces

Additional information

The appropriate BM10088 reference is selected according to the required attenuation value and permitted attenuation deviation. EMCO supports the technical selection of the appropriate model and its positioning within the complete RF or microwave measurement chain.

Model comparison
