Fixed RF attenuators - 7/16 DIN, 5 to 25 W: BM10016 / BM10083 / BM10085 | Bracke Manufacturing
Bracke fixed 50-ohm attenuators with 7/16 DIN interfaces, DC to 7.5 GHz operation, 5 to 25 W power ratings and attenuation values up to 40 dB.

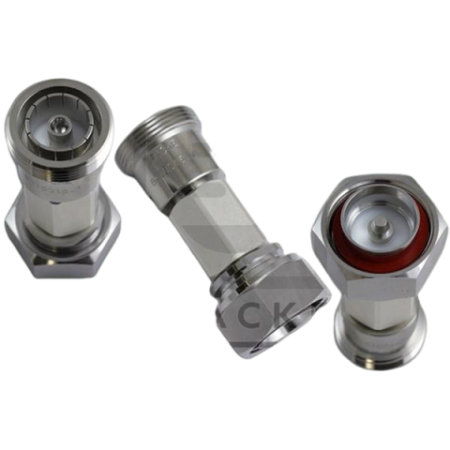

The Bracke BM10016, BM10083 and BM10085 series consist of fixed coaxial attenuators designed for 50-ohm RF signal paths with a 7/16 DIN interface. All listed models cover a frequency range from DC to 7.5 GHz.
The three series primarily differ in their power ratings. The BM10016 series is rated at 5 W, the BM10083 series at 10 W and the BM10085 series at 25 W. Depending on the series and reference, fixed attenuation values from 1 to 40 dB are listed.
Advantages
- Three power classes: Choice of 5, 10 or 25 W according to the power level of the RF signal path.
- Frequency range up to 7.5 GHz: For broadband RF applications from DC to 7.5 GHz.
- Fixed attenuation values: Defined signal-level reduction for measurement, test and system applications.
- 50-ohm system impedance: For corresponding RF components, instruments and system environments.
- 7/16 DIN interface: For coaxial RF signal paths using this connector type.
- Consistent maximum VSWR: 1.45:1 for all listed versions.
Key features
- Product type: Fixed coaxial RF attenuator
- Manufacturer: Bracke Manufacturing
- Product series: BM10016, BM10083 and BM10085
- Impedance: 50 ohms
- Frequency range: DC to 7.5 GHz
- Interface: 7/16 DIN
- BM10016 power rating: 5 W
- BM10083 power rating: 10 W
- BM10085 power rating: 25 W
- Attenuation values: Model-dependent, from 1 to 40 dB
- Maximum VSWR: 1.45:1
Typical applications
- Defined signal-level reduction in 50-ohm RF signal paths
- Level adjustment between RF sources, components and measurement instruments
- RF measurement and test setups up to 7.5 GHz
- Integration into laboratory, test-bench and production systems
- Testing and characterisation of RF components and assemblies
- Signal conditioning in systems using 7/16 DIN interfaces
Additional information
The appropriate series is selected according to the required power rating of 5, 10 or 25 W. Within each series, the reference is selected according to the required attenuation value and permitted attenuation deviation. EMCO supports the technical selection and positioning of the appropriate attenuator within the complete RF measurement or system chain.
Model comparison - BM10016 series, 5 W
| Reference | Attenuation | Attenuation accuracy | Frequency range | Power rating | Max. VSWR |
|---|---|---|---|---|---|
| BM10016.1 | 1 dB | ±0.3 dB | DC to 7.5 GHz | 5 W | 1.45:1 |
| BM10016.2 | 2 dB | ±0.3 dB | DC to 7.5 GHz | 5 W | 1.45:1 |
| BM10016.3 | 3 dB | ±0.3 dB | DC to 7.5 GHz | 5 W | 1.45:1 |
| BM10016.6 | 6 dB | ±0.3 dB | DC to 7.5 GHz | 5 W | 1.45:1 |
| BM10016.10 | 10 dB | ±0.5 dB | DC to 7.5 GHz | 5 W | 1.45:1 |
| BM10016.20 | 20 dB | ±0.5 dB | DC to 7.5 GHz | 5 W | 1.45:1 |
| BM10016.30 | 30 dB | ±0.75 dB | DC to 7.5 GHz | 5 W | 1.45:1 |
| BM10016.40 | 40 dB | ±1.5 dB | DC to 7.5 GHz | 5 W | 1.45:1 |
Model comparison - BM10083 series, 10 W
| Reference | Attenuation | Attenuation accuracy | Frequency range | Power rating | Max. VSWR |
|---|---|---|---|---|---|
| BM10083.1 | 1 dB | ±0.3 dB | DC to 7.5 GHz | 10 W | 1.45:1 |
| BM10083.2 | 2 dB | ±0.3 dB | DC to 7.5 GHz | 10 W | 1.45:1 |
| BM10083.3 | 3 dB | ±0.3 dB | DC to 7.5 GHz | 10 W | 1.45:1 |
| BM10083.6 | 6 dB | ±0.3 dB | DC to 7.5 GHz | 10 W | 1.45:1 |
| BM10083.10 | 10 dB | ±0.5 dB | DC to 7.5 GHz | 10 W | 1.45:1 |
| BM10083.20 | 20 dB | ±0.5 dB | DC to 7.5 GHz | 10 W | 1.45:1 |
| BM10083.30 | 30 dB | ±0.7 dB | DC to 7.5 GHz | 10 W | 1.45:1 |
| BM10083.40 | 40 dB | ±0.7 dB | DC to 7.5 GHz | 10 W | 1.45:1 |
Model comparison - BM10085 series, 25 W
| Reference | Attenuation | Attenuation accuracy | Frequency range | Power rating | Max. VSWR |
|---|---|---|---|---|---|
| BM10085.3 | 3 dB | ±0.5 dB | DC to 7.5 GHz | 25 W | 1.45:1 |
| BM10085.6 | 6 dB | ±0.5 dB | DC to 7.5 GHz | 25 W | 1.45:1 |
| BM10085.10 | 10 dB | ±0.75 dB | DC to 7.5 GHz | 25 W | 1.45:1 |
| BM10085.20 | 20 dB | ±0.75 dB | DC to 7.5 GHz | 25 W | 1.45:1 |
