Fixed RF attenuators – 10 W, DC to 40 GHz: BM10098 series | Bracke Manufacturing
Bracke BM10098 fixed 50-ohm attenuators with 2.92 mm interfaces, a 10 W power rating, DC to 40 GHz operation and attenuation values from 3 to 40 dB.

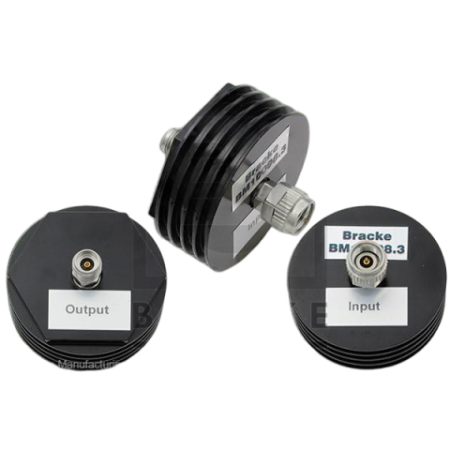

The Bracke BM10098 series consists of fixed coaxial 50-ohm attenuators with a 2.92 mm interface. The models cover a continuous frequency range from DC to 40 GHz and are rated for an RF power of 10 W.
The series is available with fixed attenuation values of 3, 6, 10, 20, 30 and 40 dB. All versions have a maximum VSWR of 1.35:1. Attenuation accuracy ranges from ±0.8 to ±1.2 dB, depending on the selected model.
Advantages
- Broad frequency coverage: Operation from DC to 40 GHz for RF and microwave signal paths.
- 10 W power rating: Common specified RF power across all models in the series.
- Six fixed attenuation values: Choice of 3, 6, 10, 20, 30 or 40 dB.
- Defined attenuation accuracy: Model-specific accuracy values from ±0.8 to ±1.2 dB.
- Consistent VSWR: Maximum VSWR of 1.35:1 for every version.
- 2.92 mm interface: For compatible coaxial RF and microwave measurement chains up to 40 GHz.
Key features
- Product type: Fixed coaxial RF attenuator
- Manufacturer: Bracke Manufacturing
- Product series: BM10098
- Impedance: 50 ohms
- Frequency range: DC to 40 GHz
- Power rating: 10 W
- Interface: 2.92 mm
- Attenuation values: 3, 6, 10, 20, 30 and 40 dB
- Attenuation accuracy: ±0.8 to ±1.2 dB, depending on the model
- Maximum VSWR: 1.35:1
Typical applications
- Defined signal-level reduction in 50-ohm RF and microwave signal paths
- Level adjustment between RF sources, components and measurement instruments
- RF and microwave measurement setups up to 40 GHz
- Integration into laboratory, test-bench and production environments
- Testing and characterisation of RF components, assemblies and systems
- Signal conditioning in broadband measurement and test systems
Additional information
The appropriate BM10098 reference is selected according to the required attenuation value and permitted attenuation deviation. EMCO supports the technical selection of the appropriate model and its positioning within the complete RF or microwave measurement chain.
Model comparison
| Reference | Attenuation | Attenuation accuracy | Frequency range | Power rating | Max. VSWR |
|---|---|---|---|---|---|
| BM10098.3 | 3 dB | ±1.0 dB | DC to 40 GHz | 10 W | 1.35:1 |
| BM10098.6 | 6 dB | ±1.0 dB | DC to 40 GHz | 10 W | 1.35:1 |
| BM10098.10 | 10 dB | ±1.0 dB | DC to 40 GHz | 10 W | 1.35:1 |
| BM10098.20 | 20 dB | ±0.8 dB | DC to 40 GHz | 10 W | 1.35:1 |
| BM10098.30 | 30 dB | ±1.2 dB | DC to 40 GHz | 10 W | 1.35:1 |
| BM10098.40 | 40 dB | ±1.2 dB | DC to 40 GHz | 10 W | 1.35:1 |
