Fixed RF attenuators - DC to 50 GHz, 2.4 mm: BM10061 series | Bracke Manufacturing
Bracke BM10061 fixed 50-ohm attenuators for DC to 50 GHz, 0.5 W and 2.4 mm connectors, with attenuation values from 3 to 30 dB.

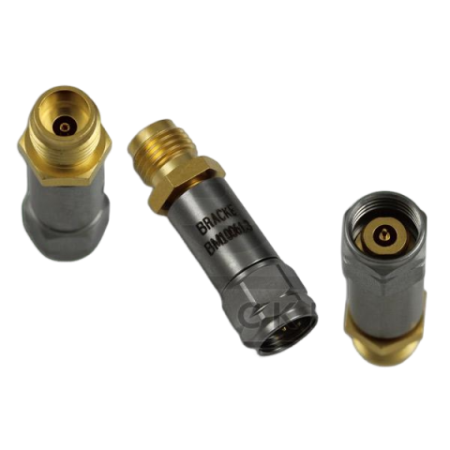

The Bracke BM10061 series consists of fixed coaxial 50-ohm attenuators with a 2.4 mm male-to-female configuration. The models cover a frequency range from DC to 50 GHz and provide nominal attenuation values of 3, 6, 10, 20 or 30 dB.
With a maximum input power of 0.5 W, the attenuators can be used to provide defined signal-level reduction in RF and microwave signal paths, measurement setups and test systems.
Advantages
- Frequency range up to 50 GHz: Suitable for broadband RF and microwave signal paths from DC to 50 GHz.
- Five fixed attenuation values: Models with 3, 6, 10, 20 and 30 dB allow selection according to the required signal-level reduction.
- 2.4 mm inline configuration: Male-to-female design for direct integration between compatible 2.4 mm interfaces.
- Defined 50-ohm interface: Designed for RF and microwave measurement chains with a 50-ohm system impedance.
- Wide operating temperature range: Specified for operation from -45 to +85 °C.
Key features
- Product type: Fixed coaxial RF attenuator
- Frequency range: DC to 50 GHz
- Impedance: 50 ohms
- Connector configuration: 2.4 mm male-to-female
- Attenuation values: 3, 6, 10, 20 or 30 dB
- Maximum VSWR: 1.75:1
- Maximum input power: 0.5 W
- Operating temperature: -45 to +85 °C
- Overall length: 1.094 inches
- Hex size: 5/16 inch
- Thread: M7 × 0.75 - 6G
- 2.4 mm connectors: Gold-plated stainless steel
- Coupling nut and housing: Passivated stainless steel
- Contacts: Gold plated
- Insulators: Modified PPO
Typical applications
- Defined signal-level reduction in 50-ohm RF and microwave signal paths
- RF and microwave measurement setups up to 50 GHz
- Signal-level adjustment in laboratory, test-bench and system environments
- Inline integration between compatible 2.4 mm interfaces
- Test and measurement systems requiring a fixed attenuation value
Additional information
The BM10061 attenuators are manufactured by Bracke Manufacturing, LLC. EMCO supports the selection of the appropriate attenuation value and the technical integration of the component into RF and microwave measurement chains.
Model comparison
| Model | Nominal attenuation | Attenuation accuracy |
|---|---|---|
| BM10061.3 | 3 dB | ±1.5 dB |
| BM10061.6 | 6 dB | ±1.5 dB |
| BM10061.10 | 10 dB | ±1.5 dB |
| BM10061.20 | 20 dB | ±2 dB |
| BM10061.30 | 30 dB | ±2 dB |
