Helmholtz coil for Low Frequency Magnetic Field Susceptibility Testing: EMC HLM-10 | EMC TEST
EMC HLM-10 Helmholtz coil for Low Frequency Magnetic Field Susceptibility Testing according to MIL-STD-461 RS01/RS101 and IEC/EN 61000-4-8 / 61000-4-9.

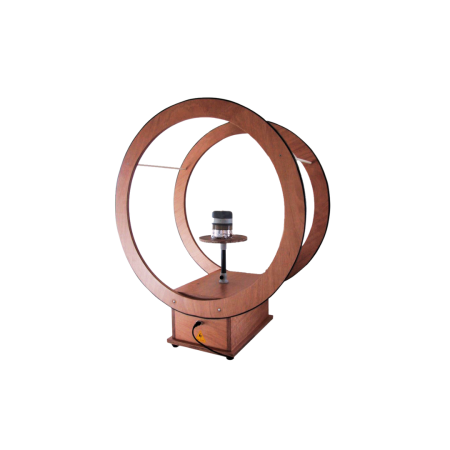

The EMC HLM-10 is a Helmholtz coil designed for Low Frequency Magnetic Field Susceptibility Testing on military equipment, subsystems and electronic devices under test. It is used to expose the Equipment Under Test (EUT) to a relatively uniform magnetic field and to support efficient EMC Qualification Tests.
The coil is specified for operation from DC to 30 MHz. According to the datasheet, it supports continuous magnetic field testing as well as pulsed testing with higher pulse current capability.
Advantages
- Relatively uniform magnetic field for reproducible susceptibility testing.
- Reduced EMC Qualification Test Time thanks to a defined test setup.
- Suitable for military EMC testing on equipment and subsystems.
- Adjustable specimen support with optic fibre feed-through for flexible EUT positioning.
- Suitable for continuous and pulsed magnetic field tests up to 20000 A/m in pulse mode.
Main features
- Model: EMC HLM-10
- Coil size: 2 x 1 m coils
- Ring diameter: 100 cm
- Typical resistance: 3.1 Ohm
- Maximum input current: 10–15 A
- Maximum pulse current: 100 A at 200 ms
- Maximum field: 2000 A/m and 20000 A/m in pulse mode
- Frequency range: DC to 30 MHz
- Dimensions: 130 x 100 x 66 cm
- Insulation material: Marine multi-layer wood
- Input: Push and hold button
- Specimen support: Adjustable with optic fibre feed-through
Typical applications
- Low Frequency Magnetic Field Susceptibility Testing
- EMC Qualification Tests for military equipment and subsystems
- Testing according to MIL-STD-461C, Test Method RS01
- Testing according to MIL-STD-461D, Test Method RS101 or more recent methods
- Testing according to IEC 61000-4-8 / EN 61000-4-8
- Testing according to IEC 61000-4-9 / EN 61000-4-9
Additional information
The EMC HLM-10 is part of the EMCTEST Technologies Helmholtz coil series. Page 3 of the datasheet shows the HLM-10 model with 2 x 1 m coils, R = 3.1 Ohm impedance and a 50 Hz signal test. The graph presents the magnetic induction trend in µT as a function of voltage.
EMCO supports technical users in selecting suitable test equipment for EMC, immunity and susceptibility testing, especially for standards-driven test setups in military and industrial environments.
