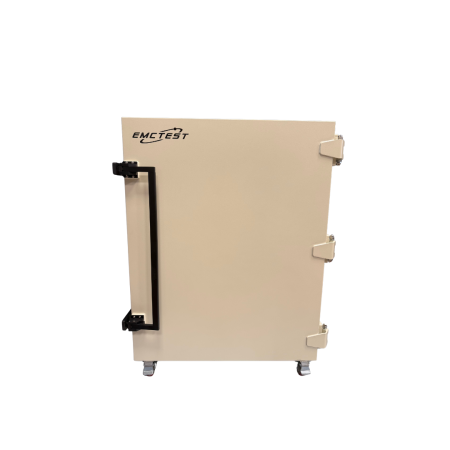

Shielded anechoic chamber - 0.8 to 6 GHz: EMC-SHC-BOX-EM-3 | EMC TEST

The EMC-SHC-BOX-EM-3 is a shielded anechoic chamber from the EM series for RF, telecommunication and precompliance applications. It is designed for measurement tasks requiring a controlled shielded environment for communication devices and larger DUTs.

With an operating frequency range from 0.8 to 6 GHz, the chamber is particularly suitable for testing routers, laptops and ISM, GSM and UMTS communication devices. Its shielding performance is ≥ 75 dB at 2.4 GHz and ≥ 70 dB at 5.8 GHz, depending on the installed feed thrus.

Advantages

• Shielded test environment for RF, EMC and telecommunication measurements.
• Compact space-saving design for laboratory, R&D and precompliance environments.
• Movable construction thanks to wheels mounted at the base.
• Designed for larger DUTs such as routers, laptops and other communication devices.
• Modular interface configuration with I/O feed thrus, RF feed thrus, fiber optic feed thru and line filter.
• Optional anechoic lining on all internal walls to optimize the RF test environment.
• EMCO supports technical users in selecting and configuring suitable RF, EMC and telecommunication test solutions.

Key features

• External box dimensions: 770 x 905 x 1105(h) mm.
• Internal dimensions with anechoic lining: 650 x 680 x 880(h) mm.
• Door dimensions: 650 x 880(h) mm.
• Weight: approximately 90 kg.
• Operating frequency: 0.8 – 6 GHz.
• Shielding performance: ≥ 75 dB @ 2.4 GHz and ≥ 70 dB @ 5.8 GHz.
• FT-N/SMA option: N and SMA feed thrus.
• FT-USB2 option: USB Type A / Type B feed thrus, shielded female connector.
• Construction: painted metal structure.
• Internal equipment: optional planar anechoic material on all internal walls.
• Mobility: wheels mounted at the base for flexible positioning in the laboratory.

Typical applications

• Telecommunication applications and testing of communication devices.
• Testing of routers, laptops and other comparable devices.
• Precompliance tests for radiation and immunity.
• Path loss measurements in a shielded environment.
• Receiver sensitivity tests for communication systems.
• Sensitive RF measurements requiring effective shielding.
• Test environments for ISM, GSM and UMTS devices.

Additional information

The EMC-SHC-BOX-EM-3 is designed for use with larger DUTs and combines a shielded chamber structure with optional internal anechoic lining. The chamber is fully modular, allowing connections and options to be adapted to the required test configuration.

The shielding performance depends on the type of installed feed thrus. Several connection options are available for integration into measurement setups:

• I/O feed thrus: USB, RS-232, RJ-45, RJ-11, DB9, DC.
• RF feed thrus: SMA, N, BNC.
• Fiber optic feed thru.
• Internal antennas: Log 900–2400 MHz, 1–10 GHz.
• Anechoic lining: planar anechoic material on all internal walls.
• Additional accessories: shielded window, fiber optic feed thru, line filter.

For a configuration with anechoic floor, internal dimensions of 560 x 750 x 450(h) mm are specified. The chamber can also host line filters for AC and DC power supplies up to 1000 V.
