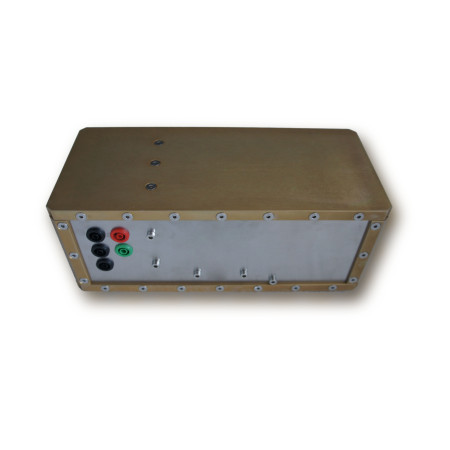

The SHC Shielded Anechoic Chamber is a custom-configurable shielded anechoic chamber for RF, telecommunication and precompliance applications. It provides a controlled test environment for measurements requiring effective shielding from external electromagnetic interference.

With an operating frequency range from DC to 6000 MHz, the SHC is suitable for sensitive RF measurements, communication devices and test setups in ISM, GSM and UMTS environments. Its shielding performance ranges from >60 dB up to 120 dB, depending on frequency.

Advantages

• Custom configuration of outer dimensions, door clearance and maximum DUT size.
• Shielded and absorbing test environment for RF, EMC and telecommunication testing.
• Modular connection area for I/O feed thrus, RF feed thrus, fiber optic feed thru and line filters.
• Rugged INOX steel construction for high mechanical stability.
• Compact space-saving design for laboratory, R&D and precompliance environments.
• Flexible configuration for larger DUTs and application-specific test requirements.
• EMCO supports technical users in selecting and configuring suitable RF and EMC test solutions.

Key features

• Operating frequency: DC – 6000 MHz.
• Shielding performance: >60 dB up to 120 dB, depending on frequency.
• Outer dimensions: custom-defined.
• Door clearance: custom-defined.
• DUT MAX size: custom-defined.
• Construction: rugged 1.5 mm INOX steel structure.
• Manufacturing: CAD-designed and CNC-manufactured.
• Mechanical sealing: oversized hinges and latches with dual trapezoidal door coupling layout in ERGAL.
• RF sealing: high-performance fabric non tissue gaskets at joint locations.
• Internal area: optionally equipped with RF plain absorbers.
• Technical panel: modular configuration for application-specific connections.

Typical applications

• Telecommunication testing of routers, laptops and communication devices.
• Precompliance tests for radiation and immunity.
• Path loss measurements in a shielded environment.
• Receiver sensitivity tests for communication systems.
• ISM, GSM and UMTS device testing with defined shielding.
• Sensitive RF measurements where external interference must be minimized.
• 2.4 GHz test applications.

Additional information

The SHC is designed as a rugged, modular and custom-adaptable test chamber. Its 1.5 mm INOX steel construction, precise CNC manufacturing and mechanically stable door coupling support reliable RF-tight closure.

The internal area can be equipped with RF plain absorbers to further optimize the measurement environment for RF test applications. A typical RF attenuation of -90 dB at 3 GHz is specified.

Several options are available for system integration:

• I/O feed thrus: USB, RS-232, RJ-45, RJ-11.
• RF feed thrus: SMA, N, BNC.
• Fiber optic feed thru.
• Internal antennas: Log 900–2400 MHz, 1–10 GHz.
• Accessories: shielded window, fiber optic feed thru, line filter.
• Line filters: for AC and DC power supplies up to 1000 V.

Exact dimensions, maximum DUT size and door clearance are defined according to the project configuration.
