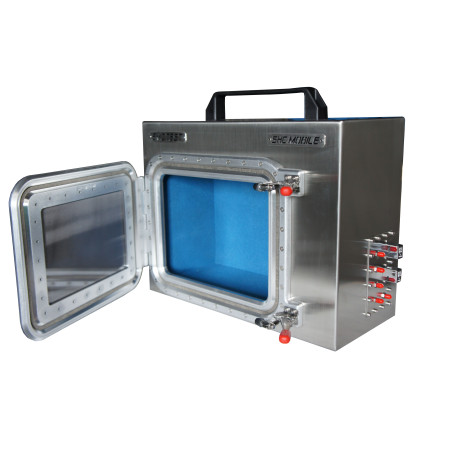

Portable shielded chamber - DC to 6000 MHz, modular RF shielding: RF Shieldbox | EMC TEST
Portable Shielded Chamber for small telecom and RF communication devices, with DC to 6000 MHz operating frequency, high RF shielding performance, INOX steel construction and modular I/O options.
This Portable Shielded Chamber is designed for RF and telecom applications over the frequency range from DC to 6000 MHz. It is specifically intended for small communication devices such as GSM, UMTS, TDMA, CDMA, AMPS, PCS, WiFi, Bluetooth and comparable devices.
The chamber provides a controlled shielded environment for sensitive measurements, pre-compliance tests, receiver sensitivity tests and path loss measurements. With its compact design, fully modular architecture and rugged INOX steel construction, it is suitable for laboratory, development and RF test environments.
Advantages
- Operating frequency from DC to 6000 MHz for RF, wireless and telecom applications.
- Shielding performance from >60 dB up to 120 dB, depending on frequency.
- Compact space-saving design for small DUTs and laboratory workbenches.
- Portable and flexible form factor for different test configurations.
- Ruggedized fully INOX steel construction for high mechanical stability.
- Completely modular through configurable I/O, RF and accessory options.
- Wideband high effective RF shielding for sensitive measurements requiring isolation.
- Engineered and completely manufactured in Italy.
Key features
- Operating frequency: DC to 6000 MHz
- Shielding performance: >60 dB up to 120 dB, frequency dependent
- Outer dimensions: 45 cm length x 20 cm width x 35 cm height
- Door clearance: 26 x 20 cm
- Inside dimensions: 35 cm length x 15 cm width x 27 cm height
- Maximum DUT size: 23 x 10 x 18 cm
- Construction: ruggedized fully INOX steel construction
- Body material: 1.5 mm INOX steel
- Manufacturing: CAD design and CNC construction with tolerances down to 0.09 mm
- Gasket concept: high-performance fabric non tissue gaskets at all joint locations
- Door mechanism: oversized hinges and latches with dual trapezoidal door coupling layout
Typical applications
- Telecom testing for GSM, UMTS, TDMA, CDMA, AMPS, PCS, WiFi and Bluetooth.
- Pre-compliance tests for radiation and immunity.
- Receiver sensitivity tests on small communication devices.
- Path loss measurements in shielded RF test environments.
- Isotropic sensor calibration.
- Sensitive measurements where reliable RF shielding is required.
- Testing of small devices such as mobile phones and comparable RF communication products.
Additional information
The chamber is equipped with RF plain absorbers providing typical RF attenuation of -90 dB at 3 GHz. This configuration is particularly suitable for 2.4 GHz testing.
Input/output connections and options can be adapted to specific requirements through a modular technical panel. Available options include USB, RS-232, RJ-45, RJ-11, RF feedthroughs with SMA, N or BNC, fiber optic feedthrough, a shielded window, internal antennas Log 900-2400 MHz or 1-10 GHz, and an INOX steel handle.
EMCO supports technical users in selecting and configuring suitable shielded chambers for RF, wireless, telecom, EMC and pre-compliance applications. This includes technical assessment of shielding performance, interfaces, DUT dimensions and integration into existing test environments.
