Portable shielded chamber - DC to 20 GHz, fully INOX steel construction: SHC-MOBILE M | EMC TEST
EMCTEST SHC-MOBILE M Portable Shielded Chamber for small RF, microwave and telecom devices, with DC to 20 GHz operating frequency, high RF shielding performance, fully INOX steel construction and modular options.

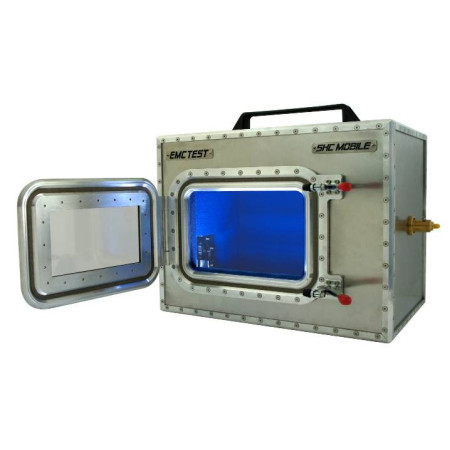

The SHC-MOBILE M from EMCTEST Technologies is a Portable Shielded Chamber for sensitive RF, microwave and telecom measurements over the frequency range from DC to 20 GHz. It is designed for small communication devices such as GSM, UMTS, TDMA, CDMA, AMPS, PCS, WiFi and Bluetooth devices.
The chamber combines a ruggedized fully INOX steel construction with a compact and flexible design. It is suitable for measurement tasks requiring repeatable RF shielding, defined DUT accommodation and application-specific interfaces.
Advantages
- Operating frequency from DC to 20 GHz for broadband RF and microwave applications.
- Shielding performance from >60 dB up to 120 dB, depending on frequency.
- Portable and flexible form factor for laboratory, development and pre-compliance environments.
- Ruggedized fully INOX steel construction for mechanical stability and reliable shielding.
- Completely modular through configurable I/O and RF feedthroughs.
- Suitable for small RF/microwave devices and antennas.
- Engineered and completely manufactured in Italy.
Key features
- Operating frequency: DC to 20 GHz
- Shielding performance: >60 dB up to 120 dB, frequency dependent
- Outer dimensions: 45 cm length x 30 cm width x 35 cm height
- Door clearance: 23 x 15 cm
- Maximum DUT size: 23 x 15 x 18 cm
- Construction: fully INOX steel construction
- Body material: 1.5 mm INOX steel
- Manufacturing: CAD design and CNC construction with tolerances down to 0.09 mm
- Gasket concept: high-performance fabric non tissue gaskets at all joint locations
- Door mechanism: oversized hinges and latches with dual trapezoidal door coupling layout in Ergal
Typical applications
- Telecom testing for GSM, UMTS, TDMA, CDMA, AMPS, PCS, WiFi and Bluetooth.
- Pre-compliance tests for radiation and immunity.
- Receiver sensitivity tests on small communication devices.
- Path loss measurements in shielded RF test environments.
- Isotropic sensor calibration.
- Sensitive measurements where reliable RF shielding is required.
Additional information
The SHC-MOBILE M is designed for small communication devices and provides a controlled measurement environment for RF testing. The interior can optionally be equipped with RF plain absorbers providing typical RF attenuation of -90 dB at 3 GHz. This configuration is particularly suitable for 2.4 GHz testing.
Input and output connections can be adapted to the application through a modular technical panel. Available options include USB, RS-232, RJ-45, RJ-11, RF feedthroughs with SMA, N or BNC, fiber optic feedthrough, Log/Omni antennas, a shielded window, a shielded glove, internal anechoic walls, a technical panel and an internal antenna.
The unit can host line filters for AC and DC power supplies up to 1000 V. EMCO supports technical users in selecting and configuring suitable shielded chambers for RF, microwave, telecom, EMC and pre-compliance applications, as well as in integrating them into existing test and measurement environments.
