RF Shieldbox - 800 MHz to 8 GHz, modular shielding: EMC-SHC-LAP | EMC TEST
EMCTEST EMC-SHC-LAP RF Shieldbox for laptops and ISM, GSM and UMTS communication devices, with 800 MHz to 8 GHz operating frequency, high RF shielding effectiveness and modular I/O options.

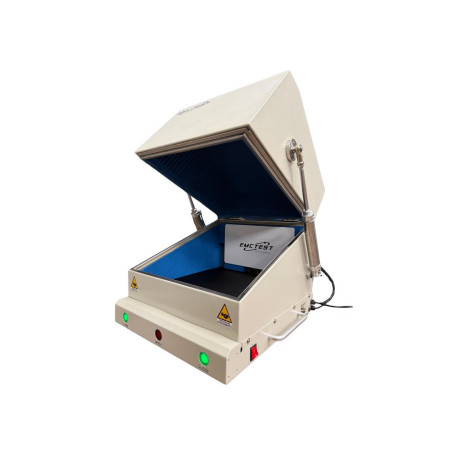

The EMC-SHC-LAP from EMCTEST Technologies is an RF Shieldbox for laptops as well as ISM, GSM and UMTS communication devices. It operates over the frequency range from 800 MHz to 8 GHz and is designed for applications requiring a controlled environment with high RF shielding effectiveness.
With internal dimensions of 43 x 44 x 31 cm, the shieldbox is suitable for larger DUTs compared with compact chambers for small handheld devices. The opening system is pneumatic and controlled by buttons.
Advantages
- Wide operating frequency range from 800 MHz to 8 GHz for RF, ISM and mobile communication applications.
- High shielding effectiveness with ≥80 dB at 2.4/5.8 GHz and ≥75 dB at 7.5 GHz.
- Suitable for laptops and larger communication devices thanks to an internal volume of 43 x 44 x 31 cm.
- CE Marked and IEEE 299 compliant for defined shielding performance requirements.
- Completely modular through configurable I/O connections and options.
- Pneumatic opening system with button control for repeatable handling during test operation.
Key features
- Model: EMC-SHC-LAP
- Material: metal
- Color: white/gray
- Certification: CE Marked + IEEE 299 compliant
- Operating frequency: 800 MHz to 8 GHz
- Shielding performance: ≥80 dB at 2.4/5.8 GHz; ≥75 dB at 7.5 GHz
- Outer dimensions: 54 cm length x 56 cm width x 40 cm height
- Internal dimensions: 43 cm length x 44 cm width x 31 cm height
- Weight: approx. 50 kg
- Opening system: pneumatic system controlled by buttons
- Options: SMA, USB, HDMI, RJ45, RS232, DB25, DB9, AC, DC, Bluetooth Measurement Antenna on request
Typical applications
- RF testing of laptops and comparable communication devices.
- ISM and mobile communication measurements covering GSM, UMTS and related communication standards.
- 2.4/5.8 GHz testing for wireless and Bluetooth applications.
- Sensitive RF measurements where external interference must be suppressed.
- Pre-compliance and development testing of electronic communication devices.
Additional information
The EMC-SHC-LAP is CAD-designed and CNC-constructed to provide a highly shielded environment for RF measurements. Heavy-duty, high-performance fabric non tissue gaskets are used at all joint locations to ensure a reliable RF-tight closure.
The interior can optionally be equipped with RF plain absorbers. These absorbers provide a typical RF attenuation of -80 dB at 2.4/5.8 GHz, making the chamber particularly suitable for testing in these frequency ranges.
A modular technical panel allows input and output connections to be configured according to the application. The unit can also host line filters for AC and DC power supplies up to 1000 V.
EMCO supports technical users in selecting and configuring suitable shielding boxes for RF, wireless, telecom, EMC and pre-compliance applications. This includes technical assessment of interfaces, shielding performance and integration into existing test environments.
