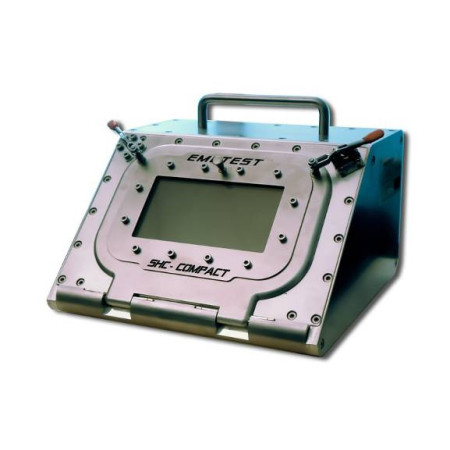

Portable shielded chamber - DC to 20 GHz, compact RF shielding: SHC-COMPACT | EMC TEST
EMCTEST SHC-COMPACT Portable Shielded Chamber for small RF, microwave and telecom devices, with DC to 20 GHz operating frequency, compact design and high RF shielding performance.
The SHC-COMPACT from EMCTEST Technologies is a Portable Shielded Chamber for sensitive RF, microwave and telecom measurements over the frequency range from DC to 20 GHz. It is designed for small communication devices, RF modules, microwave devices and antennas where a controlled shielded measurement environment is required.
The compact chamber combines a rugged INOX steel and Ergal construction with a space-saving form factor. It is suitable for pre-compliance tests, receiver sensitivity tests, path loss measurements, sensor calibration and other measurements requiring effective RF shielding.
Advantages
- Operating frequency from DC to 20 GHz for broadband RF and microwave applications.
- Shielding performance from >60 dB up to 120 dB, depending on frequency.
- Compact space-saving design for laboratory, development and pre-compliance environments.
- Rugged INOX steel and Ergal construction for a mechanically stable shielded chamber.
- Suitable for small RF/microwave devices and antennas.
- Modular technical panel for adapting I/O and RF feedthroughs.
- Engineered and completely manufactured in Italy.
Key features
- Operating frequency: DC to 20 GHz
- Shielding performance: >60 dB up to 120 dB, frequency dependent
- Outer dimensions: 25 cm length x 25 cm width x 15 cm height
- Door clearance: 15 x 9 cm
- Maximum DUT size: 15 x 18 x 6 cm
- Construction: ruggedized INOX steel and Ergal
- Body material: 1.5 mm INOX steel
- Gasket concept: high-performance fabric non tissue gaskets at all joint locations
- Door mechanism: oversized hinges and latches with dual trapezoidal door coupling layout in Ergal
- Manufacturing: CAD design and CNC construction with tolerances down to 0.09 mm
Typical applications
- Telecom testing for GSM, UMTS, TDMA, LTE, CDMA, AMPS, PCS, WiFi and Bluetooth.
- Pre-compliance tests for radiation and immunity.
- Receiver sensitivity tests on small communication devices.
- Path loss measurements in shielded RF test environments.
- Isotropic sensor calibration.
- Measurements on small RF/microwave devices and antennas.
- Sensitive measurements where reliable RF shielding is required.
Additional information
The SHC-COMPACT is designed for small communication devices such as mobile phones and comparable devices. The interior can optionally be equipped with RF plain absorbers providing typical RF attenuation of -90 dB at 3 GHz. This configuration is particularly suitable for 2.4 GHz testing.
The modular technical panel allows input and output connections to be configured according to the application. Available options include USB, RS-232, RJ-45, RJ-11, RF feedthroughs with SMA, N or BNC, fiber optic feedthrough, quad-band omni antennas, antenna couplers, an optional shielded window, internal anechoic walls, a technical panel and an integrated wideband antenna coupler.
The chamber can host line filters for AC and DC power supplies up to 1000 V. EMCO supports technical users in selecting and configuring suitable shielded chambers for RF, microwave, telecom, EMC and pre-compliance applications, as well as in assessing integration into existing test and measurement environments.
