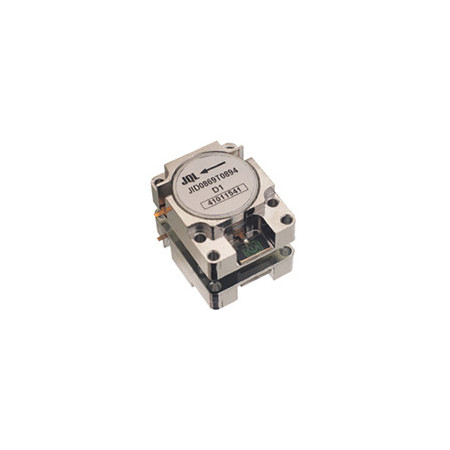

Drop-In HF-Isolatoren – Single- und Dual-Konfigurationen, 0,100 bis 36 GHz | JQL Electronics / Dorado

JQL Drop-In HF-Isolatoren von 0,1 bis 36 GHz mit modellabhängiger Isolation, Insertion Loss, VSWR und Leistungswerten für professionelle HF- und Mikrowellenanwendungen.

PREISANGEBOT ANFORDERN
close

Preisangebot anfordern



Die Drop-In RF Isolators von JQL Technologies sind passive, nicht reziproke HF-Komponenten für die gerichtete Signalübertragung und Isolation innerhalb von HF- und Mikrowellen-Signalpfaden. Die aktuell gelistete Produktfamilie umfasst Frequenzen von 0,100 bis 36 GHz.

Die zahlreichen Modelle unterscheiden sich hinsichtlich Frequency Band, Bandwidth, Isolation, Insertion Loss, VSWR und Power. Neben Single-Isolator-Ausführungen umfasst die Produktfamilie auch Dual-Konfigurationen mit erhöhten Isolationseigenschaften sowie Modelle mit temperatur- oder signalwegabhängigen Spezifikationen.

Vorteile

  • Sehr breiter Frequenzbereich: gelistete Modelle von 0,100 bis 36 GHz.
  • Single- und Dual-Isolator-Konfigurationen: JID- und JI2D-Ausführungen für unterschiedliche HF-Architekturen.
  • Hohe Isolation: bei ausgewählten Dual-Modellen bis 60 dB.
  • Geringe Insertion Loss: ausgewählte Modelle ab 0,17 dB.
  • Breitbandige Ausführungen: verschiedene Modelle decken mehrere hundert MHz bis hin zu mehreren GHz Bandbreite ab.
  • Unterschiedliche Leistungsvarianten: modellabhängige CW- und Puls-Leistungsangaben.
  • Temperaturabhängige Spezifikationen: bei ausgewählten Modellen für erweiterte Temperaturbereiche angegeben.
  • Custom Design: JQL bietet kundenspezifische Auslegungen nach Type, Frequency Band, Insertion Loss, Rejection und Isolation.

Wesentliche Merkmale

  • Produkttyp: Drop-In RF Isolator
  • Frequenzbereich der gelisteten Modelle: 0,100 bis 36 GHz
  • Konfigurationen: Single- und Dual-Isolator
  • Bandwidth: Full-Band und modellabhängige Sonderkonfigurationen
  • Isolation: modellabhängig, bei gelisteten Dual-Konfigurationen bis 60 dB
  • Insertion Loss: modellabhängig, bei ausgewählten Modellen ab 0,17 dB
  • VSWR: modellabhängig
  • Power: modellabhängige Angaben für unterschiedliche Betriebsbedingungen

Typische Anwendungen

  • DAS – Distributed Antenna Systems
  • Public-Safety-Funksysteme
  • Radar
  • Radio Links
  • SatCom
  • Wireless-Kommunikationssysteme

Weitere Informationen

Die JQL Drop-In Isolator Produktfamilie umfasst eine große Anzahl an JID- und JI2D-Konfigurationen. Die Modelle unterscheiden sich in Frequenzbereich, Bandbreite, Isolation, Insertion Loss, VSWR und Power. Mehrere Varianten innerhalb derselben Frequenzfamilie ermöglichen die Auswahl unterschiedlicher elektrischer und mechanischer Ausführungen.

Bei einzelnen Modellen werden zusätzliche Bedingungen wie Temperaturbereiche, Port-spezifische Isolation und Insertion Loss, Duty Cycle oder Pulse Width direkt in den technischen Werten angegeben. Diese Angaben sind in der folgenden Modellübersicht entsprechend den von JQL veröffentlichten Daten übernommen.

Modellvergleich

Modelle mit Startfrequenzen von 0,100 bis unter 0,500 GHz anzeigen
Teilenummer Band (GHz) Bandbreite Isolation (dB) Insertion Loss (dB) VSWR Avg Power
JID0100EM5 0.100   19 0.40 1.25 50/50
JID0109T0119EM0 0.109~0.119 Full 18 0.80 1.30 10/2
JID0136T0150EM15 0.136~0.150 Full 18 0.50 1.30 150/100
JID0137T0156P10 0.137~0.156 Full 18 0.70 1.30 150/100
JID0138T0174P15 0.138~0.174 Full 17 0.70 1.33
JID0140T0160EM10 0.140~0.160 Full 20 0.50 1.25 100/ 100
JID0140T0170EM10 0.140~0.170 Full 20 0.50 1.22 100/ 100
JID0144T0148EM10 0.144~0.148 Full 20 0.40 1.22 100/ 100
JID0148T0156EM10 0.148~0.156 Full 20 0.50 1.22 100/ 100
JID0148T0165EM10 0.148~0.165 Full 19 0.50 1.25 100/ 100
JID0150T0160EM2L 0.150~0.160 Full 20 0.50 1.22 30/30
JID0150T0174P10 0.150~0.174 Full 18 0.70 1.30 100/ 100
JID0152T0162EM10 0.152~0.162 Full 20 0.50 1.25 100/ 100
JID0152T0162EM10 0.152~0.162 Full 19.0 0.5   100/100/-
JID0156T0174EM10 0.156~0.174 Full 18 0.50 1.30 100/ 100
JID0159T0161DM10 0.159~0.161 Full 20 0.50 1.22 100/ 100
JID0165T0174DM10L 0.165~0.174 Full 20 0.40 1.25 130/100
JID0175T0200EM15 0.175~0.200 Full 22 0.40 1.20 200/150
JID0180T0220P5 0.180~0.220 Full 18 0.80 1.30 50/50
JID0193T0210DM6 0.193~0.210 Full 20 0.50 1.25 120/60
JID0205T0215DM6 0.205~0.215 Full 20 0.50 1.25 100/60
JID0207T0222DM6 0.207~0.222 Full 20 0.50 1.25 100/60
JID0225T0380P4 0.225~0.380 Full 16 0.90 1.40 40/40
JID0230T0250DM10 0.230~0.250 Full 20 0.40 1.20 100/100
JID0240T0270UM1L 0.240~0.270 Full 20 0.40 1.20 10/10
JID0245T0246DM15 0.245~0.246 Full 22 0.40 1.22 150/100
JID0250T0300UM0L 0.250~0.300 Full 18 0.50 1.28 1/1
JID0260T0280DM10 0.260~0.280 Full 21 0.40 1.22 100/60
JID0270T0320DM10 0.270~0.320 Full 18 0.60 1.25 150/100
JID0285T0315UM0L 0.285~0.315 Full 20 0.50 1.22 100/5
JID0290T0320UM1L 0.290~0.320 Full 20 0.40 1.22 10/10
JID0290T0320DM10 0.290~0.320 Full 20 0.50 1.28 100/100
JID0290T0320UM10 0.290~0.320 Full 23 0.40 1.19 150/110
JID0290T0320KM20RC 0.290~0.320 Full 18 0.35 || 18.0(1.100~1.700GHZ)   250/200/250
JID0300T0380DM10 0.300~0.380 Full 20 0.50 1.28 100/100
JID0300T0420DM10 0.300~0.420 Full 20 0.50 1.28 150/100
JID0320T0380KM1 0.320~0.380 Full 20 0.40 1.20 10/5
JID0330T0430DM10 0.330~0.430 Full 20 0.50 1.25 150/100
JI2D0350T0370UM8 0.350~0.370 Full 50 0.50 1.20 150/80
JID0352T0363KM10 0.352~0.363 Full 20 0.50 1.22 100/100
JID0360T0368KM1 0.360~0.368 Full 24 0.35 1.22 100/10
JID0380T0400KM10 0.380~0.400 Full 25 0.25 1.15 150/ 100
JID0380T0420KM10A3 0.380~0.420 Full 21 0.30 1.20 150/ 100
JID0380T0430KM10 0.380~0.430 Full 20 0.30 1.20 120/100
JID0380T0450KM10A3 0.380~0.450 Full 20 0.40 1.22 150/100
JID0380T0460KM10 0.380~0.460 Full 20 0.40 1.25 150/ 100
JI2D0380T0400UM8 0.380~0.400 Full 50 0.50 1.20 150/80
JID0380T0420KM6A2 0.380~0.420 Full 20 0.30 1.25 100/ 60
JID0390T0400KM10 0.390~0.400 Full 25 0.25 1.20 150/ 100
JI2D0390T0400MCX 0.390~0.400 Full 40 0.50 1.22 100/30
JID0390T0395KM1 0.390~0.395 Full 21.0 0.30   10/10/100
JID0406T0420KM10 0.406~0.420 Full 21 0.30 1.20 150/ 100
JID0410T0450KM10 0.410~0.450 Full 23 0.30 1.15 150/ 100
JI2D0410T0430UM8 0.410~0.430 Full 50 0.50 1.20 100/60
JID0420T0470KM10A3 0.420~0.470 Full 20 0.40 1.25 150/ 100
JID0420T0450KM10 0.420~0.450 Full 21 0.30 1.22 150/ 100
JID0420T0490KM10A3 0.420~0.490 Full 20 0.40 1.25 100/100
JID0440T0470KM10A3 0.440~0.470 Full 20 0.40 1.20 100/100
JID0440T0490KM6A3 0.440~0.490 Full 20 0.40 1.20 100/60
JID0440T0510KM10A3 0.440~0.510 Full 20 0.40 1.20 100/100
JID0445T0465CM1 0.445~0.465 Full 20.0 0.25(In-band deviation 0.1dB Max)   10/10/-
JID0445T0455UD20 0.445~0.455 Full 20.0 0.30 TYP || 0.35 MAX   200/100/600
JID0450T0470KM10 0.450~0.470 Full 20 0.40 1.20 100/100
JID0470T0512KM10 0.470~0.512 Full 22 0.30 1.20 100/100
JID0470T0614KM3 0.470~0.614 Full 18 0.60 1.30 30/30
Modelle mit Startfrequenzen von 0,500 bis unter 1 GHz anzeigen
Teilenummer Band (GHz) Bandbreite Isolation (dB) Insertion Loss (dB) VSWR Avg Power
JID0500T0600KM10A3 0.500~0.600 Full 18 0.40 1.30 150/100
JID0512T0698KM10 0.512~0.698 Full 20 0.40 1.25 150/ 100
JID0527T0605KM1 0.527~0.605 Full 20 0.30 1.20 100/10
JID0542T0686KM3 0.542~0.686 Full 20 0.50 1.22 30/30
JID0551T0629KM1 0.551~0.629 Full 20 0.30 1.20 100/10
JID0570T0710KM2 0.570~0.710 Full 20 0.50 1.22 15/15
JID0617T0652M10A3 0.617~0.652 Full 24 0.25 1.15 100/70
JID0617T0746M15C 0.617~0.652 0.728~0.746 26.0@+25°C 25.0@-40~+95°C 0.17 (0.25 dB max. extended temp)   200/150/1000, 0.01% duty cycle
JID0617T0960KM2C 0.617~0.960 Full 14.0 0.9   50/20/-
JID0617T0960KM4 0.617~0.960 Full 14.0 0.9   40/40/-
JID0617T0960KM2 0.617~0.960   14.0 0.9   20/20/-
JID0620T0715HM1 0.620~0.715 Full 20 0.40 1.25 50/10
JID0698T0746M8 0.698~0.746 Full 20 0.40 1.25 150/80
JID0698T0806M10 0.698~0.806 Full 20 0.40 1.25 150/100
JID0700T0800M10 0.700~0.800 Full 21 0.30 1.20 100/50
JID0700T1000M10 0.700~1.000 Full 17 0.50 1.32 100/100
JID0700T1000M10A3 0.700~1.000 Full 14.0@+25°C || 12.0@-20~+70°C 0.75@+25°C || 0.85@-20~+70°C   100/100/-
JID0719T0766M10A3 0.719~0.766 Full 21 0.25 1.20 100/100
JID0728T0756M10A3 0.728~0.756 Full 20 0.30 1.22 100/100
JID0728T0894M10 0.728~0.894 Full 20 0.40 1.22 100/100
JID0730T0770M10A3 0.730~0.770 Full 23 0.30 1.20 100/50
JID0740T0820M10 0.740~0.820 Full 23 0.3 1.16 100/100
JID0746T0756M6 0.746~0.756 Full 23 0.25 1.20 100/60
JID0758T0768M10 0.758~0.768 Full 23 0.20 1.20 100/100
JID0762T0862M10 0.762~0.862 Full 21 0.35 1.20 100/100
JID0773T0803M5 0.773~0.803 Full 25 0.25 1.15 50/50
JID0791T0821M10A3 0.791~0.821 Full 24 0.20 1.10 100/70
JID0800T0960M10 0.800~0.960 Full 20 0.40 1.20 100/100
JID0806T0894M10A3 0.806~0.894 Full 21 0.25 1.20 150/100
JID0815T0885M10 0.815~0.885 Full 22 0.25 1.15 100/50
JID0820T0915M10 0.820~0.915 Full 22 0.30 1.15 100/100
JID0824T0849M10 0.824~0.849 Full 23 0.22 1.15 150/ 100
JID0824T0849SM10 0.824~0.849 Full 20 0.35 1.20 100/ 100
JI2D0830T0845M10 0.830~0.845 Full 60 0.40 1.20 100/60
JI2D0830T0890M10 0.830~0.890 Full 50 0.50 1.20 100/60
JID0849T0894M10 0.849~0.894 Full 22 0.22 1.15 200/100
JID0849T0851M10A3 0.849~0.851 Full 20.0 0.3   100/100/-
JID0850T0960M10 0.850~0.960 Full 20 0.35 1.20 150/100
JID0850T0869M10 0.850~0.869 Full 28 0.35 1.20 100/100
JI2D0850T0875M10 0.850~0.875 Full 46 0.50 1.20 100/60
JID0851T0894M10 0.851~0.894 Full 22 0.30 1.15 100/10
JID0851T0866SM5A3C 0.851~0.866 Full 22.0 0.3   50/50/-
JID0859T0904AM7 0.859~0.904 Full 21 0.25 1.20 100/70
JID0860T0894M8 0.860~0.894 Full 22 0.25 1.15 150/ 80
JID0860T0872M10 0.860~0.872 Full 23 0.22 1.15 150/ 100
JID0869T0960M10 0.869~0.960 Full 22 0.30 1.17 150/60
JID0869T0894AM6A30 0.869~0.894 Full 22.0@25°C || 18.0@-40°C~+100°C || 17.0@+100°C~+125°C 0.25@25°C || 0.35@-40°C~+100°C ||0.40@+100°C~+125°C   120/60(>20 SECS)
JID0870T0990M10 0.870~0.990 Full 21 0.35 1.22 100/100
JID0875T0890M6 0.875~0.890 Full 20 0.25 1.15 70/70
JI2D0875T0890M10 0.875~0.890 Full 50 0.40 1.20 100/60
JID0880T0908M10 0.880~0.908 Full 23 0.25 1.20 100/ 100
JID0880T0915M10 0.880~0.915 Full 22 0.25 1.15 100/ 100
JID0880T0915SM10 0.880~0.915 Full 21 0.35 1.20 100/ 100
JID0880T0960M10 0.880~0.960 Full 23 0.25 1.20 100/ 100
JID0880T0960M10-Ver2 0.880~0.960 Full 22.0 0.25   100/100/-
JID0884T0894AM10 0.884~0.894 Full 20 0.35 1.20 100/ 100
JID0890T0925M10 0.890~0.925 Full 21 0.25 1.20 100/ 100
JID0890T0925SM10 0.890~0.925 Full 21 0.30 1.20 100/ 100
JID0890T0970M10 0.890~0.970 Full 21 0.30 1.20 100/100
JID0900T0960M10 0.900~0.960 Full 21 0.25 1.20 100/ 100
JID0900T0960SM10 0.900~0.960 Full 22 0.30 1.20 100/100
JID0900T1100M10 0.900~1.100 Full 20 0.40 1.20 100/100
JID0900T1800UM0 0.900~1.800 Full 14 0.70 1.49 5/1
JID0900T0960SM10C 0.900~0.960 Full 21.0 0.30   100/100/-
JID0910T0975M10A3 0.910~0.975 Full 22 0.25 1.20 150/100
JI2D0919T0935M5 0.919~0.935 Full 40.0 0.5   100/50/500
JI2D0919T0935M5C 0.919~0.935 Full 40.0 0.5   100/50/500
JID0920T0960M10 0.920~0.960 Full 22 0.25 1.20 200/100
JID0921T0960M10A2 0.921~0.960   21.0 0.25@+25°C || 0.30@-40~+85°C   150/100/-
JID0925T0960M10 0.925~0.960 Full 22 0.22 1.15 150/ 100
JID0925T0960SM10 0.925~0.960 Full 20 0.35 1.20 100/ 100
JID0925T0960AM6 0.925~0.960 Full 19 0.35 1.25 100/70
JID0930T1130M50P 0.930~1.130 Full 21 0.30 1.20 100/60
JID0935T0960M10 0.935~0.960 Full 23 0.25 1.15 150/ 100
JID0935T0960SM10 0.935~0.960 Full 21 0.30 1.20 100/ 100
JID0950T1050M1 0.950~1.050 Full 22 0.30 1.20 100/10
JID0960T1215M10 0.960~1.215 Full 19 0.40 1.25 100/60
JID0960T1240M10 0.960~1.240 Full 19 0.40 1.25 200/ 100
JID0960T1215M20PC 0.960~1.215 Full 18.0 0.45   -/-/2 KW Duty Cycle 4%
JID0980T1080M1 0.980~1.080 Full 21 0.30 1.20 100/10
JID0990T1130M1 0.990~1.130 Full 20 0.30 1.25 100/10
Modelle mit Startfrequenzen von 1 bis unter 2 GHz anzeigen
Teilenummer Band (GHz) Bandbreite Isolation (dB) Insertion Loss (dB) VSWR Avg Power
JID1000T1060M10 1.000~1.060 Full 21 0.25 1.15 100/60
JID1015T1045M10 1.015~1.045 Full 23 0.25 1.20 100/100
JID1020T1100M10P 1.020~1.100 Full 22 0.20 1.15 100/100
JID1025T1150M10 1.025~1.150 Full 23 0.22 1.15 100/ 100
JID1025T1150M10-Ver2 1.025~1.150 Full 22.0 0.3   100/100/500
JID1025T1150M10-Ver3 1.025~1.150 Full 22.0 0.3   100/100/500
JID1030T1090M10 1.030~1.090 Full 25 0.30 1.20 100/100
JID1080T1195M10 1.080~1.195 Full 20 0.40 1.20 150/100
JID1100T1300M10 1.100~1.300 Full 20 0.40 1.20 150/100
JID1170T1370SM1 1.170~1.370 Full 20 0.40 1.20 10/10
JID1195T1405SM1 1.195~1.405 Full 20 0.40 1.20 10/5
JID1200T1400M10 1.200~1.400 Full 20 0.30 1.20 150/100
JID1200T1600M4 1.200~1.600 Full 18 0.50 1.30 35/35
JID1200T1400SM10 1.200~1.400   20.0 0.35   100/100/1000,10% Duty cycle
JID1250T1350M0 1.250~1.350 Full 20 0.40 1.25 2/2
JID1265T1285M100 1.265~1.285 Full 23.0 0.20   -/-/1000 with 10% duty cycle 100usec pulse width
JID1280T1300M20 1.280~1.300 Full 22 0.25 1.15 600/600
JID1300T1400M15 1.300~1.400 Full 20 0.40 1.20 150/100
JID1300T1850M5 1.300~1.850 Full 18 0.50 1.25 50/50
JID1300T1400SM20 1.300~1.400 Full 20.0 0.30   200/200/750 Pulse width:2ms, duty:30%
JID1350T2700E49 1.350~2.700 Full 17 0.60 1.33 20/20
JID1400T1600SM1 1.400~1.600 Full 20 0.40 1.25 100/10
JID1420T1550M20 1.420~1.550 Full 20 0.25 1.20 200/200
JID1435T1535M1 1.435~1.535 Full 20 0.40 1.21 30/10
JID1450T1850M3 1.450~1.850 Full 18 0.50 1.25 30/30
JID1450T1850M3-Ver2 1.450~1.850 Full 18.0 0.50   30/30/-
JID1455T1530M10A3 1.455~1.530 Full 21 0.425 1.20 100/100
JID1500T1700M10 1.500~1.700 Full 20 0.40 1.20 150/100
JID1520T1620M0 1.520~1.620 Full 20 0.40 1.20 2/2
JID1563T1588SM0 1.563~1.587 Full 20.0 0.35   1/1/-
JID1580T1810M10 1.580~1.810 Full 20 0.35 1.20 100/100
JID1625T1660SM10 1.605~1.625 Full 20 0.35 1.20 100/80
JID1700T1790M10A2 1.700~1.790 Full 23 0.22 1.15 150/ 100
JID1700T2200M20 1.700~2.200 Full 20 0.40 1.20 200/200
JID1700T2300M10A3 1.700~2.300 Full 18 0.35 1.29 100/ 100
JID1710T1785SM10 1.710~1.785 Full 22 0.25 1.15 100/ 100
JID1710T1785M10A3 1.710~1.785 Full 22 0.22 1.20 150/ 100
JID1750T4250G0R 1.750~4.250 Full 15 1.00 1.50 1/1
JID1765T2250M10 1.765~2.250 Full 19 0.40 1.25 50/50
JID1800T2100M10 1.800~2.100 Full 20 0.40 1.25 100/100
JID1800T2200M10 1.800~2.200 Full 19 0.50 1.25 100/100
JID1800T1880SM10 1.800~1.880 Full 21 0.20 1.20 100/100
JID1800T1885M10A3 1.800~1.880 Full 23 0.20 1.15 100/100
JID1350T1500M10A3 1.800~1.880 Full 22.0 0.25 1.15 100/100/-
JID1805T1880SM10 1.805~1.880 Full 23 0.25 1.15 100/ 100
JID1805T1990M10 1.805~1.990 Full 22 0.30 1.15 150/ 100
JID1805T1880M10 1.805~1.880 Full 25.0@P2 to P1(28dB nom at 25°C) 0.22@P1 to P2   See Datasheet
JID1840T1880SM5 1.840~1.880 Full 25 0.25 1.15 50/50
JI2D1850T1990M10 1.850~1.990 Full 50 0.50 1.20 100/100
JID1900T2100SM10 1.900~2.100 Full 20 0.35 1.20 100/ 100
JID1920T2000M10 1.920~2.000 Full 20 0.35 1.20 100/ 100
JID1920T2125SM10 1.920~2.125 Full 20 0.35 1.20 100/ 100
JID1930T1960M10 1.930~1.960 Full 23 0.20 1.15 150/100
JID1930T1990SM10 1.930~1.990 Full 22 0.22 1.15 100/ 100
Modelle mit Startfrequenzen von 2 bis unter 4 GHz anzeigen
Teilenummer Band (GHz) Bandbreite Isolation (dB) Insertion Loss (dB) VSWR Avg Power
JID2000T2500SM10 2.000~2.500 Full 18 0.40 1.30 150/100
JID2000T4000R1 2.000~4.000 Full 18 0.60 1.30 100/10
JID2000T6000M3 2.000~6.000 Full 14.0dB Over Temp; 15.0dB @ Room 1.0dB Over Temp; 0.8dB @ Room 1.5 Over Temp; 1.43 @ Room 35/15
JID2080T2260SM0 2.080~2.260 Full 22 0.30 1.20 30/5
JID2080T2200M10 2.080~2.200 Full 22 0.22 1.15 150/ 100
JID2100T2200M10 2.100~2.200 Full 22 0.22 1.15 150/ 100
JID2100T2300SM6 2.100~2.300 Full 22 0.25 1.15 60/60
JID2100T2500SM6 2.100~2.500 Full 20 0.40 1.20 100/60
JID2100T2200M10C 2.100~2.200 Full 25.0@P2 to P1(28dB nom at 25°C) 0.22@P1 to P2   See Datasheet
JID2110T2170SM10 2.110~2.170 Full 22 0.22 1.15 100/ 100
JID2110T2170M10 2.110~2.170 Full 22 0.22 1.15 150/ 100
E26000013000 2.110~2.170 Full 23.0 0.26   175/80/-
JID2150T2350SM1 2.150~2.350 Full 20 0.35 1.20 150/ 100
JID2180T2250SM6 2.180~2.250 Full 21 0.25 1.20 100/60
JID2191T2408VM2 2.191~2.408 Full 19 0.45 1.25 20/10
JID2200T2300SM1 2.200~2.300 Full 21 0.30 1.20 60/10
JID2200T2500SM1 2.200~2.500 Full 20 0.40 1.25 100/ 100
JID2200T3000K1M1 2.200~3.000 Full 19 0.40 1.25 30/10
JID2200T2400VM2 2.200~2.400 Full 20.0 0.40   100/20/-
JID2290T2410M6 2.290~2.410 Full 20 0.20 1.20 90/60
JID2300T2500SM10 2.300~2.500 Full 22 0.30 1.20 100/ 100
JID2300T2700M15 2.300~2.700 Full 21 0.30 1.20 500/100
JID2400T2500SM10 2.300~2.500 Full 22 0.30 1.20 100/ 100
JID2400T2600SM10 2.400~2.600 Full 21 0.30 1.20 100/100
JID2400T2500M25A3 2.400~2.500 Full 20 0.25   300/250/-
JID2496T2690SM10 2.496~2.690 Full 21 0.25 1.20 100/ 100
JID2500T2700SM10 2.500~2.700 Full 21 0.25 1.25 100/ 100
JID2600T2700SM10 2.600~2.700 Full 21 0.25 1.20 100/60





In Verbindung stehende Artikel

BRACKE Manufacturing neu bei EMCO: HF- und Mikrowellenkomponenten BRACKE Manufacturing neu bei EMCO: HF- und Mikrowellenkomponenten
Veröffentlicht in: Neues aus der Welt der Elektronik – EMCO informiert
18.08.2026
156 Ansichten
EMCO übernimmt den Vertrieb von BRACKE Manufacturing in der DACH-Region und erweitert sein Portfolio an HF- und...
Gesamten Fachartikel lesen
PREISANGEBOT ANFORDERN
close

Preisangebot anfordern
