High-Precision VNA Calibration & Verification Kits from Maury Microwave

New VNA Calibration & Verification Kits from Maury Microwave

Maury Microwave, headquartered in Ontario, California (USA), introduces a new generation of VNA calibration and verification kits designed for high-precision RF and microwave measurements. These advanced kits help engineers achieve highly accurate, repeatable VNA calibrations while reducing overall measurement uncertainty.

High-accuracy SOLT calibration with the CK50 Series

The CK50 Series SOLT calibration kits include individually characterized short, open and load standards. Each kit is delivered with custom S-parameters that replace generic polynomial definitions for calibration. This results in TRL-comparable accuracy with the usability and simplicity of traditional SOLT calibration standards.

• Individually measured calibration standards
• Delivered with precise custom S-parameters
• TRL-level accuracy with a simplified SOLT workflow
• Designed for demanding laboratory and production VNA applications

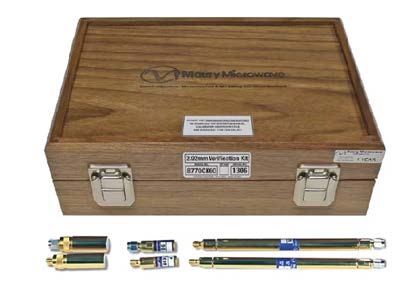

Calibration validation using CK60 Verification Kits

The CK60 Series verification kits are designed for validating 1-port and 2-port VNA calibrations on both matched and mismatched DUTs. Each kit includes individually characterized verification standards used to confirm calibration accuracy by comparing user-measured S-parameters to factory reference values.

• Highly accurate verification standards
• Compatible with matched and mismatched DUTs
• Reliable validation through S-parameter comparison

Enhanced confidence with Insight Software

Combined with Maury’s MT940 Insight Calibration & Measurement Software, users can quantify the uncertainty contributions of their calibration kits and apply overlapping uncertainty boundaries to validate calibrations with significantly increased confidence.

Typical Applications

• RF & microwave component development and manufacturing
• Accredited metrology and EMC laboratories
• High-precision production and end-of-line test environments
• Research and advanced RF measurement facilities

About Maury Microwave and EMCO Elektronik

EMCO Elektronik GmbH is the official representative of Maury Microwave in Germany and Austria. With extensive expertise in RF and EMC technology, EMCO supports customers with consultation, integration, and long-term technical assistance for high-precision VNA calibration environments.

Special News 28/2024 – Maury Microwave VNA Calibration & Verification Kits
