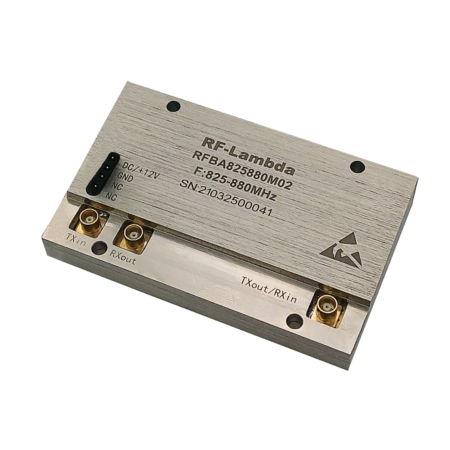

Bi-Directional Amplifier – Wideband Options : RFBA Series | RF-Lambda
RF-Lambda’s Bi-Directional Amplifiers are designed for applications where both transmission and reception occur over a single RF path. These amplifiers automatically switch between transmit and receive modes, offering seamless operation in repeater systems and TDD (Time Division Duplex) environments. With high linearity and low noise figures, they ensure signal integrity and system efficiency.
RF-Lambda’s Bi-Directional Amplifiers are designed for applications where both transmission and reception occur over a single RF path. These amplifiers automatically switch between transmit and receive modes, offering seamless operation in repeater systems and TDD (Time Division Duplex) environments. With high linearity and low noise figures, they ensure signal integrity and system efficiency.
Benefits :
- Enables full-duplex communication over a single RF line
- Reduces system complexity and component count
- High linearity ensures minimal signal distortion
- Low noise figure enhances receiver sensitivity
- Hermetically sealed options available for harsh environments
Key Features :
- Frequency coverage from 330 MHz to 2.2 GHz (model dependent)
- Automatic switching between TX and RX paths
- High gain in both directions (up to 43 dB TX gain)
- Output power up to 48 dBm
- Excellent ACPR performance (≤ -40 dBc)
- Compact and rugged design
- Customizable for LTE, GSM, CDMA, WCDMA, and other standards
Applications :
- RF repeaters and signal boosters
- LTE-TDD and FDD systems
- Military and aerospace communication systems
- Wireless infrastructure and base stations
- Emergency communication networks
