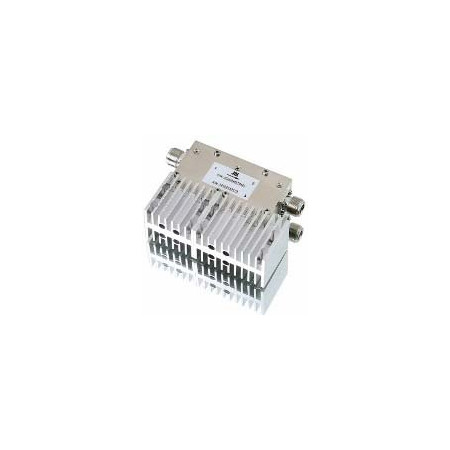

The JQL Technologies Coaxial RF Isolators are passive non-reciprocal RF components designed for directional signal transmission and isolation within coaxial RF and microwave signal paths. The listed product range covers frequencies from 0.118 to 41.4 GHz.

The product family includes numerous frequency configurations with model-dependent isolation, insertion loss, VSWR, bandwidth and average-power specifications. Both single- and dual-isolator configurations are available, together with broadband and application-specific versions.

Advantages

  • Wide frequency coverage: listed configurations from 0.118 to 41.4 GHz.
  • Single and dual isolator configurations: multiple architectures for different RF signal-chain requirements.
  • High isolation: values up to 60 dB on listed models.
  • Low insertion loss: values down to 0.2 dB on selected configurations.
  • Broadband options: several configurations cover extended frequency ranges.
  • Multiple power configurations: model-specific average-power specifications are available throughout the range.
  • Temperature-dependent specifications: selected models include RF performance specified at different operating temperatures.
  • Custom design: JQL provides project-specific configurations according to type, frequency band, insertion loss, rejection and isolation requirements.

Key features

  • Product type: coaxial RF isolator
  • Frequency range of listed models: 0.118 to 41.4 GHz
  • Configurations: single and dual isolators
  • Bandwidth: full-band and broadband configurations depending on model
  • Isolation: model dependent, up to 60 dB on listed configurations
  • Insertion loss: model dependent, down to 0.2 dB on selected configurations
  • VSWR: model dependent
  • Average power: model dependent

Typical applications

  • DAS – Distributed Antenna Systems
  • Public safety radio systems
  • Radar
  • Radio links
  • SatCom
  • Wireless communication systems

Additional information

The JQL Coaxial RF Isolator range includes a large number of JIC, JI2C and other configurations differing in frequency band, bandwidth, isolation, insertion loss, VSWR and average-power characteristics. Dual-isolator models provide higher isolation values in several frequency bands.

Selected configurations include temperature-dependent RF specifications or signal-path-specific electrical characteristics. JQL also publishes generic single- and dual-isolator package options for several frequency ranges; these package configurations are listed separately from individual product references below.

Model comparison

View models from 0.118 to 0.499 GHz
Part Number Band (GHz) Bandwidth Isolation (dB) Insertion Loss (dB) VSWR Avg Power
JIC0118T0144NF2 0.118~0.144 Full 17.0 1.0 0 100/50/100
JIC0119N3 0.119~0.120 Full 19 0.50 1.25 100/30
JIC0123N3 0.123~0.124 Full 19 0.50 1.25 100/30
JI2C0130T0150N0 0.130~0.150 Full 40 1.00 1.25 5/5
JIC0130T0170N5F 0.130~0.170 Full 17 0.7 1.33 50/50
JIC0132T0144N15R 0.132~0.144 Full 19 0.50 1.25 150/150
JIC0134N3 0.133~0.135 Full 19 0.50 1.25 100/30
JIC0135T0155N10R 0.135~0.155 Full 20 0.50 1.25 150/100
JIC0144T0149N10R 0.144~0.149 Full 20 0.50 1.25 150/100
JIC0145T0165N3R 0.145~0.165 Full 22.0 0.60 0 125/-/-
JIC0149T0151S10R 0.149~0.151 Full 20 0.40 1.22 150/100
JIC0150T0158N10R 0.150~0.158 Full 20 0.50 1.25 100/100
JI2C0150T0174MS1 0.150~0.174 Full 40 0.80 1.25 100/10
JIC0150T0180N3R 0.150~0.180 Full 19 0.50 1.25 100/30
JIC0155T0175S10 0.155~0.175 Full 20 0.50 1.25 150/100
JI2C0156T0162N10 0.156~0.162 Full 50 0.8 150/100/-
JIC0190T0230N1R 0.190~0.230 Full 18 0.40 1.29 50/15
JIC0208T0238S0R 0.208~0.238 Full 25 0.30 1.22 2/2
JIC0223T0253S0R 0.223~0.253 Full 25 0.30 1.22 2/2
JIC0238T0268S0R 0.238~0.268 Full 25 0.30 1.22 2/2
JIC0249T0251N6R 0.249~0.251 Full 21 0.30 1.20 150/60
JIC0250T0300S1 0.250~0300 Full 18 0.50 1.29 10/10
JIC0280T0330N10 0.280~0.330 Full 20.0 0.50 100/100/200
JIC0285T0315S0 0.285~0.315 Full 20 0.50 1.22 10/10
JIC0295T0345S0 0.295~0.345 Full 20 0.40 1.22 1/1
JIC0300T0420S10 0.300~0.420 Full 18 0.50 1.30 200/100
JIC0300T0420N10 0.300~0.420 Full 18 0.50 1.30 200/100
JIC0313T0317N5 0.313~0.317 Full 25 0.25 1.15 100/10
JIC0315T0433N5 0.315~0.433 Full 20 0.50 1.25 150/50
JIC0327T0335S1 0.327~0.335 Full 20 0.35 1.22 10/10
JIC0345T0375S0 0.345~0.375 Full 20 0.50 1.22 10/10
JIC0350T0385N6 0.350~0.385 Full 25 0.30 1.22 125/60
JIC0350T0400S10 0.350~0.400 Full 20 0.40 1.25 250/50
JIC0350T0500N10 0.350~0.500 Full 16 0.70 1.40 300/100
JIC0380T0415N6 0.380~0.415 Full 25 0.30 1.15 125/60
JIC0380T0430N5 0.380~0.430 Full 20 0.30 1.22 100/50
JI2C0380T0450N3 0.380~0.450 Full 40 0.70 1.22 50/50
JI2C0390T0410NFNM10 0.390~0.410 Full 48 0.50 1.19 250/100
JIC0390T0450N15 0.390~0.450 Full 20 0.40 1.25 300/150
JIC0390T0450SFSF10 0.390~0.450 Full 18.0 0.50 -/-/100
JIC0380T0440N2 0.390~0.450 Full 20.0 0.40 20/20/100
JIC0400T0465N6 0.400~0.465 Full 25 0.25 1.20 100/60
JIC0400T0470S0 0.400~0.470 Full 22 0.50 1.22 5/5
JIC0400T0550N5 0.400~0.550 Full 17.0 0.70 1.22 50/50/-
JIC0405T0440N6 0.405~0.400 Full 25 0.30 1.15 125/60
JI2C0406T0430N3 0.406~0.430 Full 50 0.50 1.20 250/30
JI2C0410T0430NFNM10 0.410~0.430 Full 50 0.50 1.20 250/100
JIC0415T0455SF10 0.415~0.455 Full 25.0 0.4 100/100/-
JIC0420T0450N10 0.420~0.450 Full 25 0.25 1.25 200/100
JI2C0430T0495N3 0.430~0.495 Full 40 0.70 1.22 50/50
JIC0430T0470N6 0.430~0.470 Full 25 0.30 1.15 125/100
JIC0431T0435N5 0.431~0.435 Full 25 0.25 1.15 100/50
JIC0446T0506S0 0.446~0.506 Full 25 0.30 1.22 2/2
JI2C0450T0470N10 0.450~0.470 Full 50 0.50 1.22 100/100
JIC0450T0520N10 0.450~0.520 Full 20 0.50 1.25 150/75
JI2C0450T0470N10-Ver2 0.450~0.470 Full 50 0.7 100/100/-
JIC0459T0512N6 0.459~0.512 Full 25 0.30 1.15 125/60
JIC0465T0468N2 0.465~0.468 Full 25 0.25 1.15 100/25
JIC0465T0530N6 0.465~0.530 Full 25 0.25 1.20 100/60
JIC0470T0512N15 0.470~0.512 Full 25 0.25 1.20 200/100
JI2C0480T0590N3 0.480~0.590 Full 40 0.70 1.22 50/50
View models from 0.500 to 0.999 GHz
Part Number Band (GHz) Bandwidth Isolation (dB) Insertion Loss (dB) VSWR Avg Power
JIC0500T0520NFNM2 0.500~0.520 Full 28.0@25°C || 25.0@-10~+50°C 0.4 20/10/-
JIC0512T0698N10 0.512~0.698 Full 18 0.40 1.28 100/100
JI2C0690T0960A2N1 0.690~0.960 Full 20 1.00 1.22 10/10
JIC0698T0960S1 0.698~0.960 Full 20 0.40 1.25 100/10
JIC0700T0900S1 0.700~0.900 Full 20 0.30 1.22 5/5
JIC0700T1000S10 0.700~1.000 Full 18 0.50 1.30 100/10
JI2C0700T0800S1 0.700~0.800 Full 40 0.50 1.15 100/10
JIC0770T0960SMSF10 0.700~0.960 Full 18.0 0.5 100/100/-
JIC0763T0776N1 0.763~0.776 Full 19 0.25 1.25 125/10
JIC0791T0821N1 0.791~0.821 Full 20 0.35 1.22 10/10
JIC0800T0960S10 0.800~0.960 Full 20 0.40 1.22 100/100
JI2C0800T0960S10 0.800~0.960 Full 40 0.80 1.25 150/100
JIC0800T1000SMSF1 0.800~1.000 Full 21 0.35 1.19 10/10
JIC0800T1200S1 0.800~1.200 Full 18 0.50 1.30 1/1
JIC0820T0915BNC10 0.820~0.915 Full 22 0.30 1.22 100/100
JIC0824T0894S1 0.824~0.849 Full 22 0.30 1.15 50/5
JIC0850T0870SFSM0 0.850~0.870 Full 25 0.30 1.20 5/5
JIC0851T0869N6 0.851~0.869 Full 25 0.30 1.15 150/60
JIC0855T0895S10 0.855~0.895 Full 21 0.25 1.19 100/100
JI2C0860T0872S10 0.860~0.872 Full 50 0.50 1.15 150/100
JIC0860T0960S1 0.860~0.960 Full 20 0.30 1.22 125/10
JIC0875T0895S3 0.875~0.895 Full 23 0.25 1.19 30/30
JIC0876T0880NF0 0.876~0.880 Full 20.0 0.2 10/5/-
JI2C0900T0960N30 0.900~0.960 Full 60 0.50 1.20 300/100
JIC0902T0928S2 0.902~0.928 Full 20 0.50 1.22 100/20
JIC0925T0960S10 0.925~0.960 Full 22 0.25 1.15 100/100
JIC0950T1150NFNM15 0.950~1.150 Full 20 0.35 1.22 1000
JIC0950T1100SF1 0.950~1.100 20.0 0.4 10/5/5
JIC2200T2300SF1 0.950~1.100 20.0 0.4 10/5/5
JIC0960T1240S10 0.960~1.240 Full 20 0.30 1.22 100/100
JIC0995T1005S1 0.995~1.005 Full 23 0.25 1.19 10/10
View models from 1.000 to 1.999 GHz
Part Number Band (GHz) Bandwidth Isolation (dB) Insertion Loss (dB) VSWR Avg Power
JIC1000T1100S1 1.000~1.100 Full 23 0.30 1.15 50/10
JIC1000T2000S6R 1.000~2.000 Full 16 0.70 1.40 60/10
JIC1000T2000SFSM1 1.000~2.000 16.0 0.75 5/5/-
3B1-03 1.0~1.6 20.0 0.6 2W/2W/-
3B1-05 1.0~1.6 20.0 0.6 2W/2W/-
JIC1020T1100N10 1.020~1.100 Full 23 0.30 1.19 75/75
JIC1085T1095S1 1.085~1.095 Full 20 0.30 1.22 10/1
JIC1100T1600S1R 1.100~1.600 Full 17 0.50 1.33 60/10
JIC1160T1610SF10 1.160~1.610 Full 18.0@+25°C || 16.0@-40~+85°C 0.4@+25°C || 0.45@-40~+85°C 100/100/-
JIC1200T1400S10 1.200~1.400 Full 20 0.40 1.25 100/100
JI2C1200T1400S0 1.200~1.400 Full 40 0.80 1.22 5/5
JIC1200T2400S1R 1.200~2.400 Full 16 0.70 1.4 10/1
JI2C1200T1400N30 1.200~1.400 Full 20.0@S12, S13, S31 || 40.0@S23 0.3@S21 || 0.6@S32 300/30/3000
JIC1300T1550S6R 1.300~1.550 Full 20 0.40 1.22 80/80
JIC1350T1850N20 1.350~1.850 Full 20 0.40 1.22 200/60
JIC1400T1800N10 1.400~1.800 Full 20 0.40 1.25 200/50
JIC1400T2500S1R 1.400~2.500 Full 17 0.60 1.35 60/10
JIC1420T1550N20 1.420~1.550 Full 20 0.30 1.22 200/200
JIC1425T2690S1R 1.425~2.690 Full 17 0.60 1.35 60/10
JIC1430T1930S1R 1.430~1.930 Full 17 0.50 17.00 60/10
JIC1450T1550N20 1.450~1.550 Full 20 0.25 1.22 200/200
JIC1500T2200SMSF1 1.500~2.200 Full 21 0.35 1.19 10/10
JIC1500T2500S10 1.500~2.500 Full 20 0.50 1.22 20/10
JIC1600T1800S6 1.600~1.800 Full 20 0.35 1.22 60/60
JIC1700T2600SFSM1 1.700~2.600 Full 19 0.60 1.25 20/10
JI2C1700T2700A2S1 1.700~2.700 Full 40 1.00 1.22 10/10
JIC1700T2100SMSF10 1.700~2.100 Full 18.0 0.5 100/100/-
JI2C1800T2000S1 1.800~2.000 Full 40 0.50 1.15 100/10
JIC1805T1880S10 1.805~1.880 Full 22 0.25 1.15 100/100
View models from 2.000 to 3.999 GHz
Part Number Band (GHz) Bandwidth Isolation (dB) Insertion Loss (dB) VSWR Avg Power
JIC2000T4000S1R 2.000~4.000 Full 18 0.50 1.30 30/2
JIC2000T8000S1 2.000~8.000 Full 12 1.50 1.80 30/10
JIC2100T2200S10 2.100~2.200 Full 22 0.30 1.15 100/100
JIC21700T2700SMSF10 2.100~2.700 Full 18.0 0.5 100/100/-
JIC2110T2170S20 2.110~2.170 Full 20 0.40 1.25 200/200
JI2C2110T2170S10 2.110~2.170 Full 50 0.50 1.15 100/100
JIC2200T2700N5 2.200~2.700 Full 23 0.30 1.15 50/50
JIC2200T2700N5-Ver2 2.200~2.700 Full 23.0 0.30 1.15 50/50/-
JI2C2500T2700S1 2.500~2.700 Full 46 0.60 1.20 100/15
JIC2500T3500S2 2.500~3.500 Full 20 0.60 1.22 20/20
JIC2700T2900S10 2.700~2.900 Full 20 0.30 1.22 100/100
JIC2700T3000S1 2.700~3.000 Full 22 0.30 1.15 10/10
JIC2800T2900SMSF1 2.800~2.900 Full 20 0.25 1.22 10/10
JIC2900T3200SFSM25R 2.900~3.200 Full 20 0.40 1.25 100/25
JIC3000T3500SMSF 3.000~3.500 Full 21 0.35 1.19 10/10
JIC3000T5000S1 3.000~5.000 Full 19.0 0.50 1.25 25/1/-
JIC3000T6000S1R 3.000~6.000 Full 17 0.60 1.4 30/10
JIC3100T3600FS1 3.100~3.600 Full 20 0.40 1.22 10/10
JIC3400T3600S10 3.400~3.600 Full 20 0.35 1.22 100/10
JIC3400T4200S1R 3.400~4.200 Full 23 0.40 1.15 100/1
JIC3400T4800SMSF1 3.400~4.800 Full 21 0.35 1.19 10/10
JIC3400T4800SFSM1 3.400~4.800 Full 21.0 0.35 10/10/-
JIC3400T4200NF2 3.400~4.200 Full 20.0(TYP:23.0) 0.45(TYP:0.35) 50/20/500
JIC3400T4800SF1 3.400~4.800 Full 21.0 0.35 10/10/-
JIC3400T4300NF5 3.400~4.300 Full 20.0 0.45 100/50/-
JIC3500T4500FS0 3.500~4.500 Full 20 0.50 1.33 10/1
JIC3700T4200FS1 3.700~4.200 Full 20 0.30 1.19 30/10
JI2C3800T4500N5 3.800~4.500 Full 40 0.70 1.22 50/50
20A01J-05 3.900~6.900 Full 20.0 0.5 10/10/-
20A01J-03 3.900~6.900 Full 20.0 0.5 10/10/-
View models from 4.000 to 7.999 GHz
Part Number Band (GHz) Bandwidth Isolation (dB) Insertion Loss (dB) VSWR Avg Power
JIC4000T5000S1R 4.000~5.000 Full 20 0.35 1.22 20/10
JIC4000T8000S1R 4.000~8.000 Full 20 0.40 1.25 30/2
JIC4000T8000SFSM1 4.000~8.000 18.0 0.40 30/10/-
JIC4100T4700SMSF0 4.100~4.700 Full 20 0.40 1.22 1/1
JI2C4200T4400SFTSM1 4.200~4.400 Full 40.0 0.50 1.25 2/2/-
JIC4415T5015S1 4.415~5.015 Full 20 0.40 1.22 10/10
JIC4500T4800SMSF0 4.500~4.800 20.0 0.5 1/-/-
JIC4955T5055SFSM0 4.955~5.055 Full 20.0 0.3 1/1/-
JIC5000T6000S0 5.000~6.000 Full 20 0.35 1.22 1/1
JIC5400T5900SMSF0 5.400~5.900 Full 20 0.40 1.22 10/1
JI2C5400T5900N1 5.400~5.900 Full 50 0.50 1.25 10/10
JIC5662T5762S0 5.662~5.762 Full 25 0.30 1.22 2/2
JIC5700T6600SMSF0 5.700~6.600 Full 20 0.50 1.19 1/1
JIC5700T7100S1 5.700~7.100 Full 20 0.40 1.22 10/10
J2IC5850T6650S1 5.850~6.650 Full 50 0.60 1.20 15/10
JIC5850T6725SMSF0 5.850~6.725 Full 20 0.40 1.22 10/5
JIC58T71-07 5.852~7.125 Full 20 0.35 1.19 10/1
JIC5900T10K6S1R 5.900~10.60 Full 20 0.50 1.25 10/1
JIC6000T12K0S1D 6.000~12.00 Full 16 0.60 1.40 10/10
JIC6000T18K0S1 6.000~18.00 Full 12 1.50 1.8 15/10
JIC6000T12K0S1D-Ver2 6.000~12.000 Full 16 0.6 10/10/30
JIC6400T7200SMSF0 6.400~7.200 Full 25 0.35 1.15 1/1
JIC6400T7200SMSF0-Ver2 6.400~7.200 Full 25.0 0.35 1/-/100
JIC6840T6950SFSM0 6.840~6.950 20.0 0.30 10/10/10
JIC7000T11K0S1R 7.000~11.00 Full 20 0.40 1.25 10/10
JI2C7000T7700S1 7.000~7.700 Full 50 0.50 1.20 15/10
JIC7400T7800S1R 7.400~7.800 Full 20 0.30 1.19 10/10
JIC7825T8475SFSM1 7.825~8.475 Full 20 0.40 1.19 10/10
View models from 8.000 to 11.999 GHz
Part Number Band (GHz) Bandwidth Isolation (dB) Insertion Loss (dB) VSWR Avg Power
JI2C8000T10K0NS1 8.000~10.00 Full 40 0.80 1.25 10/10
JIC8000T12K4S1R 8.000~12.40 Full 20 0.40 1.25 10/2
JIC8000T16K0S1 8.000~16.00 Full 17 0.80 1.4 15/10
JIC8000T18K0S1 8.000~18.00 Full 17 0.80 1.4 15/10
JIC8000T8500SFSM0 8.000~8.500 Full 21 0.40 1.22 1/1
JIC8000T9000S2 8.000~9.000 Full 20 0.50 1.25 20/10
JIC8000T16K0S1-Ver2 8.000~16.00 Full 17.0 0.6 30/-
JIC8000T18K0SFSM1 8.000~18.000 15.0 0.95 30/10/-
JIC8400T10K2S1 8.400~10.20 Full 18 0.45 1.29 10/10
JIC8500T9600S1 8.500~9.600 Full 20 0.40 1.22 10/10
JI2C8500T9600S1 8.500~9.600 Full 50 0.50 1.25 15/10
JIC8550T9350SMSM0 8.550~9.350 22.0 0.30 1/2/2
JI2C9080T9180S1 9.080~9.180 Full 50 0.50 1.20 15/10
JIC9500T10K5S1 9.500~10.50 Full 21.0 0.30 1.22 10/5/50
JIC9500T11K0SFSF0 9.500~11.00 Full 20.0 0.40 1/1/-
JIC9500T11K0SMSF0 9.500~11.00 Full 20.0 0.40 1/1/-
JIC9700T11K7SMSF1 9.700~11.70 Full 20 0.40 1.22 1/1
JIC9700T12K5SMSF1 9.700~12.50 Full 20 0.50 1.22 1/1
JIC10K0T11K2S1R 10.00~11.20 Full 21 0.40 1.22 15/10
JI2C10K0T12K0S1 10.00~12.00 Full 40 0.80 1.25 5/5
JIC10K0T13K0SMSF0 10.00~13.00 Full 20 0.50 1.22 1/1
JIC10K0T15K0S1R 10.00~15.00 Full 20 0.50 1.25 15/10
JIC10K7T13K5SFSM0 10.700~13.500 Full 20.0 0.4 1/1/-
JIC10K7T13K5SMSF0 10.700~13.500 Full 20.0 0.4 1/1/-
60D150-03 10.700~13.300 21.0 0.4 -/10/-
JIC11K0T14K5SMSM0 11.000~14.500 Full 20.0 0.45 1/1/-
JIC11K0T14K5SMSF0 11.000~14.500 Full 20.0 0.45 1/1/-
JIC11K0T14K5SFSM0 11.000~14.500 Full 20.0 0.45 1/1/-
JIC11K1T12K7SMSF1 11.10~12.75 Full 20 0.40 1.19 1/1
JIC11K8T14K5SFSM1 11.80~14.50 Full 20 0.50 1.22 1/1
View models from 12.000 to 16.999 GHz
Part Number Band (GHz) Bandwidth Isolation (dB) Insertion Loss (dB) VSWR Avg Power
JIC12K0T13K0SMSF1 12.00~13.00 Full 20 0.30 1.22 10/5
JIC12K0T15K0S1R 12.00~15.00 Full 20 0.40 1.22 10/10
JIC12K0T18K0S1R 12.00~18.00 Full 20 0.60 1.30 10/10
JIC12K0T20K0S1 12.00~20.00 Full 18 0.60 1.30 10/10
JIC12K4T18K0SF0 12.400~18.000 Full 20.0 0.6 5/1/-
JIC12K7T14K8SFSF0 12.700~14.800 20.0 0.45 1/1/-
JIC12K7T14K8SMSF0 12.700~14.800 20.0 0.45 1/1/-
JIC13K5T15K0SFSM1 13.50~15.00 Full 20 0.40 1.22 1/1
JIC13K5T16K5SF1 13.500~16.500 20.0 0.40 10/10/10
JI2C14K5T15K5S0 14.50~15.50 Full 40 0.80 1.25 5/5
JIC15K1T22K0K1 15.10~22.00 Full 18 0.70 1.19 10/2
JIC15K5T17K5S1 15.50~17.50 Full 20 0.50 1.25 65/10
JIC15K5T17K5SMSF1 15.500~17.500 20.0 0.50 65/10/-
JIC16K0T18K4S0 16.000~18.400 20.0 0.50 5/5/-
JIC16K1T17K4SMSF0 16.10~17.40 Full 23 0.50 1.30 1/1
JIC16K7T19K2SMSF0 16.70~19.20 Full 19 0.50 1.30 1/1
JI2C16K75T17K25S1 16.75~17.25 Full 50 0.70 1.25 10/10
View models from 17.000 to 41.400 GHz
Part Number Band (GHz) Bandwidth Isolation (dB) Insertion Loss (dB) VSWR Avg Power
JIC17K0T22K0K1 17.00~22.00 Full 20 0.50 1.25 10/2
JIC17K2T18K2SFSM0 17.20~18.20 Full 20 0.40 1.22 1/1
JIC17K2T18K2SMSF0 17.20~18.20 20.0 0.500.40 1/1/-
JIC17K3T18K4S0 17.30~18.40 Full 20 0.40 1.22 5/5
JIC17K3T18K4S0-Ver2 17.300~18.400 Full 20.0 0.40 5/5/-
JIC17K7T19K7SFM1 17.70~19.70 Full 20 0.45 1.25 5/1
JIC17K7T21K2SMSF0 17.70~21.20 Full 18 0.50 1.19 1/1
JIC18K0T21K2SMSF1 18.00~21.20 Full 18 0.50 1.19 10/1
JIC18K5T20K5SFSM0 18.500~20.500 18.0 0.5 2/1/-
JIC18K5T20K5SMSF0 18.50~20.50 Full 18.0 0.50 2/1/-
JIC19K2T21K2SMSF1 19.20~21.20 Full 18 0.50 1.15 1/1
JIC25K0T27K0K0 25.00~27.00 23.0 0.80 1/1/-
JIC25K0T27K5KMKF0 25.000~27.500 18.0 0.6 2/1/-
JIC27K0T31K0K0 27.00~31.00 Full 19 0.70 1.25 2/1
60D313V-K03 37.5~40.5 18.0 1.20 5/1/10
60D313V-K05 37.5~40.5 18.0 1.20 5/1/10
JIC40K2T41K4K0 40.200~41.400 Full 18.0 1.0 5/1/10

Package options

View generic package configurations
Package Band (GHz) Bandwidth Isolation (dB) Insertion Loss (dB) VSWR Avg Power
PACKAGE 2.91″X3.00″ 0.119~0.300 Up To 20% 19 0.50 1.20 150/100
PACKAGE DUAL 5.67″X3.00″ 0.119~0.300 Up To 20% 40 1.00 1.20 150/100
PACKAGE 2.05″X3.33″ 0.280~0.520 Up To 20% 25 0.25 1.20 250/100
PACKAGE DUAL 4.09″X3.33″ 0.280~0.520 Up To 20% 50 0.50 1.20 250/100
PACKAGE 1.38″X2.36″ 0.500~1.200 Up To 30% 25 0.25 1.15 100/100
PACKAGE DUAL 3.53″X1.50″ 0.500~1.200 Up To 30% 50 0.50 1.15 100/100
PACKAGE 1.25’X1.25″ 0.700~1.200 Up To 30% 25 0.25 1.20 100/10
PACKAGE 1.18″X1.30″ 0.800~2.000 Full 25 0.25 1.20 100/100
PACKAGE 1.00″X1.12″ 1.000~2.300 Full 25 0.25 1.20 100/100
PACKAGE DUAL 2.00″X1.12″ 1.000~2.300 Full 50 0.40 1.22 100/10
PACKAGE 0.75″X0.75″ 3.000~6.000 Up To 30% 25 0.25 1.20 100/10
PACKAGE 0.50″X0.626″ 4.000~8.600 Up To 30% 25 0.30 1.20 10/5
PACKAGE 0.50″X0.626″ 8.000~12.00 Up To 30% 25 0.30 1.20 10/5
PACKAGE 0.50″X0.626″ 12.00~18.00 Up To 30% 25 0.30 1.20 10/5
PACKAGE 0.50″X0.626″ 17.00~27.00 Up To 30% 25 0.30 1.20 10/5

Related articles

BRACKE Manufacturing now at EMCO: RF and Microwave Components BRACKE Manufacturing now at EMCO: RF and Microwave Components
Posted in: News from the World of Electronics – EMCO Reports
08/18/2026
165 views
EMCO takes over BRACKE Manufacturing distribution in the DACH region, expanding its portfolio of RF and microwave...
View full article
REQUEST A QUOTE
close

Request a quote
