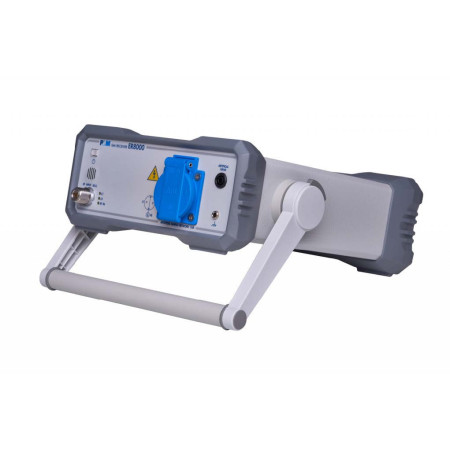

ER8000 & ER9000 FFT EMI Receivers – Demo Units |
ER8000/01 and ER9000/00 FFT EMI receivers available as EMCO ex-demo units at special clearance prices, including re-calibration before sale.
Special Offer – FFT EMC Measuring Receivers
The ER8000/01 and ER9000/00 ex-demo units are available at attractive special prices.
ER8000/01: EUR 15,920.00 excl. VAT instead of EUR 21,010.00 excl. VAT
ER9000/00: EUR 12,190.00 excl. VAT instead of EUR 15,675.00 excl. VAT
Both instruments include re-calibration before sale.
Contact EMCO for availability and technical details.
Presentation
The ER8000/01 and ER9000/00 are FFT EMC measuring receivers for fast emission measurements. The ER8000/01 covers 9 kHz to 3 GHz and integrates a 16 A LISN. The ER9000/00 operates from 10 Hz to 30 MHz and features a colour touchscreen and battery operation.
Advantages
- Ex-demo units at special prices
- Re-calibration included
- Fast FFT measurement technology
- PMM Emission Suite included
Main Features
| Model | ER8000/01 | ER9000/00 |
|---|---|---|
| Frequency range | 9 kHz – 3 GHz | 10 Hz – 30 MHz |
| Equipment | Integrated 16 A LISN | Colour touchscreen, battery operation |
| Standards | CISPR 16-1-1, MIL-STD-461, ANSI C63.2, FCC | CISPR 16-1-1 |
| Ex-demo unit | 03/2025 | 08/2025 |
| Special price | EUR 15,920.00 excl. VAT | EUR 12,190.00 excl. VAT |
Typical Applications
- EMC development and pre-compliance measurements
- Conducted emission measurements
- Compliance measurements with the ER8000/01 according to the stated standards
- Laboratory and mobile measurement tasks
Additional Information
Both instruments are offered as ex-demo units as part of a stock clearance. EMCO provides technical support in selecting the appropriate receiver for the required EMC measurement application.
