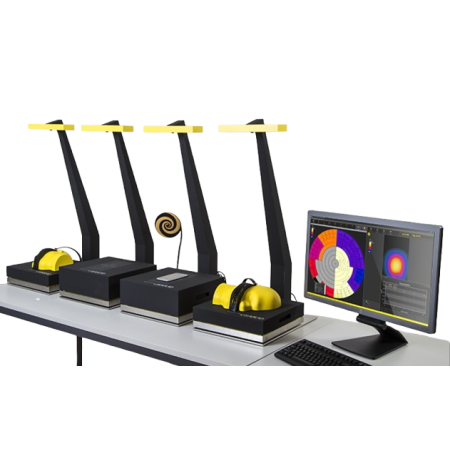

SAR Measurement System : cSAR3D | SPEAG
The cSAR3D is the fastest and most advanced Specific Absorption Rate (SAR) measurement system on the market. Based on novel vector array technology, it delivers full SAR distribution and peak spatial-average SAR results in under a second. Designed for use in any environment—from R&D labs to production lines—it supports real-time SAR monitoring, dynamic power control evaluation, and proximity sensor testing. Fully compliant with IEC 62209-3, cSAR3D is the gold standard for fast, accurate, and repeatable SAR testing.
The cSAR3D is the fastest and most advanced Specific Absorption Rate (SAR) measurement system on the market. Based on novel vector array technology, it delivers full SAR distribution and peak spatial-average SAR results in under a second. Designed for use in any environment—from R&D labs to production lines—it supports real-time SAR monitoring, dynamic power control evaluation, and proximity sensor testing. Fully compliant with IEC 62209-3, cSAR3D is the gold standard for fast, accurate, and repeatable SAR testing.
Advantages
- Unmatched speed: full SAR results in less than one second
- Real-time SAR monitoring for dynamic and multi-antenna devices
- Validated by independent labs to meet IEC 62209-3 criteria
- Compact phantoms (Flat, Left Head, Right Head) for flexible use
- Compatible with DASY8 for fully automated testing workflows
- Ideal for compliance, pre-compliance, and production-line testing
- Measurement uncertainty <30% for all Flat phantom tests
Key Features
- Vector array sensor technology for high-resolution SAR mapping
- Time-average SAR and simultaneous transmission SAR combining
- X10 spatial combining algorithm for enhanced resolution
- Real-time visualization of SAR distribution
- Fully compatible with legacy DASY52 and cSAR3D data
- Modular system with Flat, Left Head, and Right Head phantoms
- Seamless integration with DASY8 Module c3D for automation
- Supports all wireless device types including smartphones, wearables, and IoT
Typical Applications
- SAR compliance testing for mobile and wireless devices
- Pre-screening in R&D and design validation
- Production-line testing for quality assurance
- Market surveillance and certification
- Proximity sensor evaluation and antenna diversity testing
Additional Information
- DASY83D combines cSAR3D with DASY8 for full automation
- Used by over 1000 institutions worldwide
- Software continuously updated to meet evolving standards
- Developed by SPEAG in collaboration with ZMT Zurich MedTech AG
