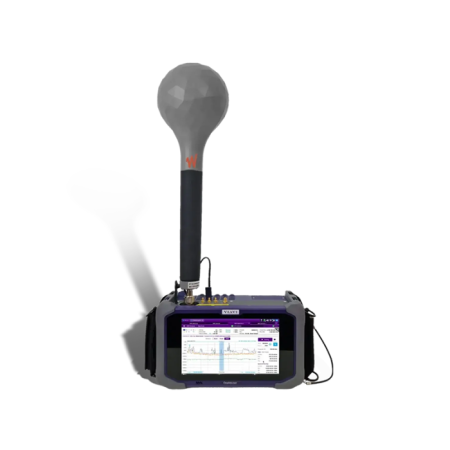

EMF Exposure Analyzer - frequency selective EMF measurement and Code Selective analysis: RFSelectiQ | WAVECONTROL
RFSelectiQ from Wavecontrol is a frequency selective EMF Exposure Analyzer for accurate EMF measurements from 30 MHz to 8 GHz with LTE and 5G NR Code Selective analysis.
close
The RFSelectiQ EMF Exposure Analyzer from Wavecontrol is a frequency selective measurement solution for EMF exposure assessment.
- Designed for telecom service providers and regulatory agencies
- Assessment of human exposure to electromagnetic fields
- Detailed and accurate selective measurements of radio signals
- Supports compliance verification and personal safety
RFSelectiQ combines in a single device the standard frequency selective EMF analysis method with an advanced Code Selective analysis method for LTE and 5G NR networks.
- Standard coverage with the Wavecontrol WTA8G5 tri-axial antenna
- Frequency range 30 MHz to 8 GHz
- Expandable up to mm-wave frequencies with additional antennas
Benefits
- All-in-one solution for frequency selective and Code Selective EMF measurements
- Easy-to-use operation with clear PASS/FAIL indications
- Alarm settings for quick identification of excessive radiation
- Configurable user setups for fast on-site measurements
- Compliance with international standards including IEC, ITU, IEEE, CENELEC, and ARPANSA
- Configurable for different exposure limits such as ICNIRP, FCC, and EU
- Flexible modular design for in-situ upgrades
- WiFi connectivity with full remote control
Key features
- Spectrum mode for comprehensive analysis of radiation levels by frequency range
- Scanner mode for detailed comparison across multiple frequency ranges down to a single band or channel
- Multi-trace analysis with average, maximum, and minimum EMF power logging
- Automatic antenna control with a 30 MHz to 8 GHz isotropic antenna
- Selectable measurement duration
- Code Selective mode for LTE/5G EMF power extrapolation and power variation analysis
- Support for all 3GPP 5G NR channel configurations: NSA and SA in FR1 or FR2
- Automatic SSB search and PCI detection
- EMF power extrapolation from SSB beams or traffic beams
- Support for isotropic and directional antenna options
Typical applications
- Assessment of human exposure to electromagnetic fields at cell sites
- Verification of compliance with EMF exposure limits
- Measurements for existing and new radio technologies
- Analysis of cellular and non-cellular radio technologies
- Measurement campaigns using the Broadband method
- Measurement campaigns using the Frequency selective method
- Measurement campaigns using the Code Selective method
