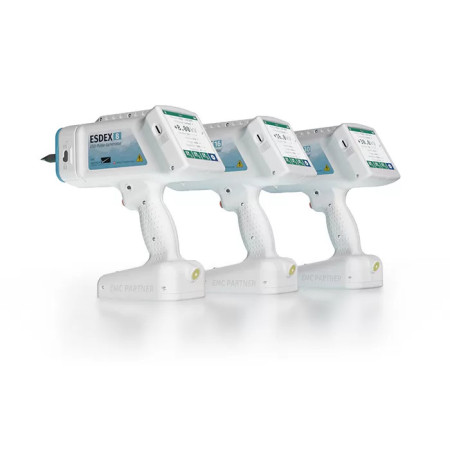

ESD Generator – Modular discharge networks up to 30 kV: ESDEX Series | EMC PARTNER AG

The ESDEX series from EMC Partner is a new generation of ESD generators with modular discharge networks, designed to meet the highest requirements in EMC testing. Available in 8 kV, 16 kV and 30 kV versions, this series combines flexibility, performance and ease of use.

The system features a modern user interface, ergonomic design and intelligent operation, making it suitable for both laboratory and field testing environments.

Advantages

• Modular architecture with interchangeable discharge networks
• Wide voltage range up to 30 kV
• Ergonomic and perfectly balanced design
• Intuitive operation with capacitive touchscreen
• Integrated reporting (PDF, CSV, HTML)
• Long operating time even at high performance
• Rechargeable battery with USB-C fast charging
• Excellent price-performance ratio

Main Features

• Voltage levels: 8 kV, 16 kV, 30 kV
• 4-inch capacitive touchscreen
• Programmable side buttons for one-handed operation
• User-defined test plan creation
• Direct report generation on the generator
• Modern and intelligent user interface
• Rechargeable battery with fast charging (~80 min)

Typical Applications

• Industrial EMC testing: IEC 61000-4-2
• Automotive testing: ISO 10605
• Defense applications: MIL-STD-461 CS118
• Aviation testing: RTCA DO-160 Section 25

Additional Information

The ESDEX series is fully configurable and designed for a wide range of EMC test environments. Its modular concept allows adaptation to different standards and test requirements.

EMCO Elektronik supports customers with technical expertise in EMC and RF, ensuring optimal integration of EMC Partner solutions into test setups.
