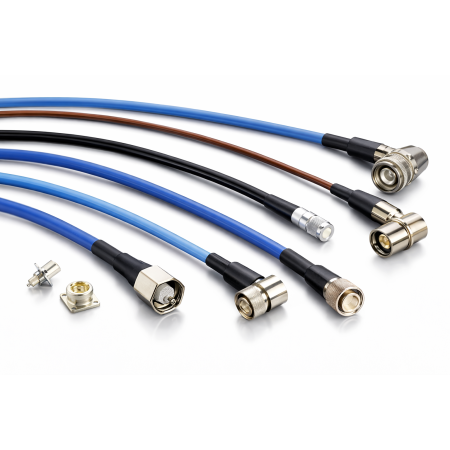

RF Cable Assemblies – pre-assembled, up to 6 GHz: TRU-500 / TRU-560 | Winchester Interconnect

The Winchester TRU-500 / TRU-560 series includes pre-assembled RF cable assemblies for dependable signal transmission in RF test environments. These cable assemblies are available from EMCO stock in selected versions and are suitable for a wide range of RF measurement and interconnection tasks.

Advantages

• Ready-to-use cable assemblies for fast integration into existing setups
• Frequency range up to 6 GHz depending on the selected connector configuration
• Suitable for RF laboratories and test benches
• Available from EMCO stock in selected versions
• Flexible configurations available on request

Main Features

• Series: Winchester TRU-500 / TRU-560
• Type: pre-assembled RF cable assemblies
• Frequency range: DC – 6 GHz
• Note: resulting frequency range depends on the selected connector
• Available version: TRU-560, 6 m, N (m) – N (m), 1 piece
• Available version: TRU-500, 1.8 m, 7/16 (m) 90° – 7/16 (m) 90°, 1 piece
• Additional configurations: available on request

Typical Applications

• RF interconnections in laboratory environments
• Test bench cabling for RF measurement systems
• Signal routing between instruments and accessories
• Replacement or extension cables for existing RF setups

Additional Information

These RF cable assemblies are available in selected stock configurations. Additional versions and connector combinations are available on request.
