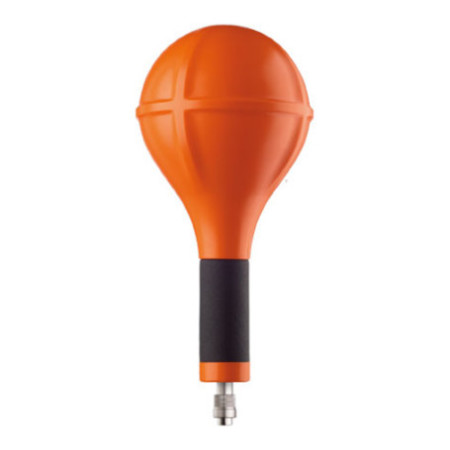

Isotropic E&H Field Probe 1 Hz – 10 MHz : WP10M | WAVECONTROL
WP Series isotropic True RMS E&H field probes from 1 Hz to 10 MHz. FFT analysis, Weighted Peak Method, ISO 17025 calibration, compliant with EU Directive 2013/35/EU and IEC standards.
close
The WP Series consists of professional combined electric and magnetic field probes designed for low-frequency and broadband applications from 1 Hz up to 10 MHz, depending on the model. The probes support True RMS measurements, FFT spectrum analysis and Weighted Peak Method (WPM) for human exposure compliance assessment. All probes are delivered with ISO 17025 accredited calibration (ILAC).
- Combined E- and H-field measurement
- Isotropic 3-axis sensing
- True RMS technology
- FFT analysis capability (model dependent)
- Weighted Peak Method compliant with EU Directive 2013/35/EU
- Compatible with SMP3 and SMP2 instruments
Key Advantages
- Wide frequency coverage for power grid, railway and industrial environments
- Compliance assessment according to EU Directive 2013/35/EU, ICNIRP, IEEE and IEC standards
- High sensitivity in low-frequency applications
- Upgradeable firmware for future exposure limit updates
- Robust design for field and laboratory use
Typical Applications
- Power grid and substations
- Railway systems
- Industrial manufacturing facilities
- Occupational exposure assessment
- EMC and R&D laboratories
Main Technical Specifications – Model Comparison
| Model | WP50 | WP400 | WP400-3 | WP10M |
|---|---|---|---|---|
| Frequency Range | 10 Hz – 3 kHz | 1 Hz – 400 kHz | 1 Hz – 400 kHz | 1 Hz – 10 MHz |
| Sensor Type | Isotropic, RMS | Isotropic patented electrodes | Isotropic electrode (E) Isotropic 3 cm² coils (H) |
Isotropic coil (100 cm²) + dipole arrangement |
| E-Field Measurement Range | 2.5 – 20000 V/m (RMS) | 1 – 100 kV/m | 10 – 400 kV/m | 2 – 100 kV/m |
| H-Field Measurement Range | 0.25 – 2000 µT (RMS) | 50 nT – 30 mT | 200 nT – 50 mT | 100 nT – 47 mT |
| FFT Capability | No | 1024-point FFT | 1024-point FFT | FFT with SPAN up to 10 MHz |
| Weighted Peak Method | Yes | Yes | Yes | Yes |
| Isotropy | ± 5 % | ± 5 % (E) ± 4 % (H) |
± 5 % (E) ± 4 % (H) |
± 5 % (E) ± 4 % (H) |
| Typical Uncertainty | — | 0.67 dB (E) 0.60 dB (H) |
0.67 dB (E) 0.60 dB (H) |
0.67 dB (E) 0.60 dB (H) |
| Weight | 210 g | 220 g | 125 g | 220 g |
| Calibration | ISO 17025 Accredited Calibration (ILAC) – Recommended interval: 24 months |
|||
