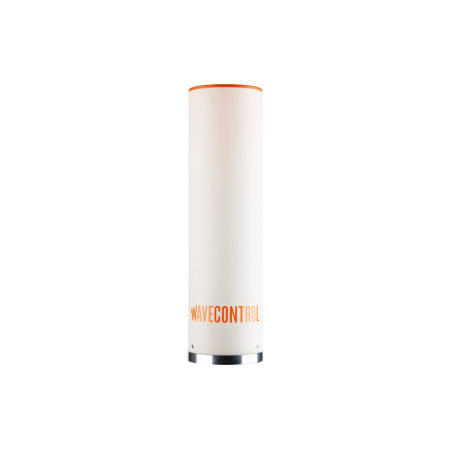

MonitEM-Lab – 24/7 Indoor EMF Monitoring from 100 kHz to 90 GHz | WAVECONTROL

MonitEM-Lab is a fixed system designed for continuous 24/7 indoor electromagnetic field monitoring. It is used in laboratories, manufacturing facilities and technical environments to verify emitter performance, detect unwanted emissions and ensure compliance with human safety limits. The system is ITU-T K.83 compliant and 5G Ready.

• Broadband measurement range: 100 kHz – 90 GHz (depending on field probe)
• Isotropic RMS sensing with simultaneous 3-axis measurement
• Ethernet communication
• Real-time visual and audible alarms
• Standalone operation or wall mounting

Key Advantages

• Continuous 24/7 EMF monitoring in indoor environments
• Compliance with ITU-T K.83
• Ready for 5G monitoring
• Easy network integration via Ethernet
• Optional remote management through Control Center
• Compatibility with SMP2 / SMP3 and MonitEM systems

Measurement Methods

• Isotropic RMS measurement
• Simultaneous 3-axis acquisition
• Sampling frequency: 500 ms
• 6-minute or custom sliding window averaging
• Online and offline configurable data retention
• Memory: EEPROM + MicroSD card
• Watchdog smart power control unit

Technical Specifications

• Sensor type: Isotropic, RMS
• Interchangeable probe system: 100 kHz – 90 GHz
• Communication: Ethernet
• Power supply: AC 110 – 220 V
• Dimensions: 445 × Ø 120 mm
• Weight: 2.4 kg
• Installation kits: Wall, mast or tripod
• Alarms: Configurable audible and visual alarms

Compatible Field Probes

Compatible with E-field, H-field and E&H field probes covering 100 kHz to 90 GHz. All probes are plug and play and supplied with individual ISO 17025 accredited calibration.

• WPF Series: 100 kHz – 90 GHz
• WPH1000: 300 kHz – 1 GHz

Typical Applications

• Telecommunications
• Laboratories
• Industry
• Radar and aerospace
• Medical facilities
