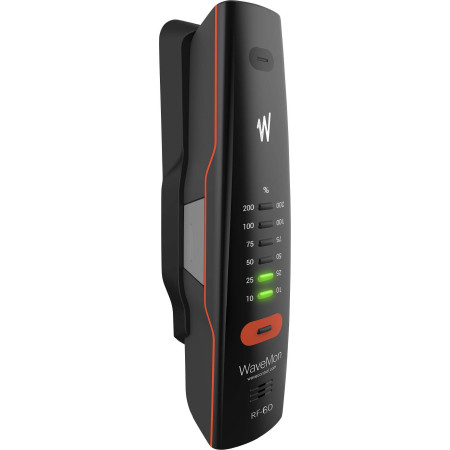

WaveMon RF-60 – Personal RF Monitor 100 kHz – 60 GHz : RF-60 | WAVECONTROL
WaveMon RF-60 Personal RF Monitor from 100 kHz to 60 GHz. Isotropic RMS E- and H-field sensors, overexposure alarms, >1M events data logger, 5G Ready, ITU-T K.145 compliant.
close
The WaveMon RF-60 is a professional personal RF monitor designed for occupational and public exposure assessment from 100 kHz to 60 GHz. It supports compliance with ICNIRP, FCC, EU Directive 2013/35/EU, SC6, NATO and ARPANSA and is compliant with ITU-T K.145.
- Isotropic RMS E- and H-field sensors
- 5G Ready up to 60 GHz
- Overexposure warning: audible, visual and vibration alarm
- Data logger with optional GPS and altimeter
- Exposure display as % of the standard
Advantages
- Broad frequency coverage: 100 kHz – 60 GHz
- Compliance support with major international RF safety standards
- Reliable isotropic RMS sensing
- Extended autonomy: > 1 month typical usage
- High storage capacity: > 1,000,000 events
- IP54 protection
- Multiple wearing configurations
Measurement Methods
- Isotropic RMS diode technology
- Shaped response according to selected standard
- Two user-adjustable alarm thresholds
- Logging interval: 1 second to 60 minutes
- Averaging interval: 1 second to 60 minutes
- Fall detection
Technical Specifications
- E-field frequency range: 100 kHz – 60 GHz
- H-field frequency range: 3 MHz – 1 GHz
- Dynamic range: up to 1000 %
- Linearity: 0.5 dB
- Isotropic deviation: ±1 dB
- LF immunity (50/60 Hz): > 30 kV/m
- Battery: 2 × AA NiMH rechargeable via USB
- Protection rating: IP54
- Operating temperature: -20 °C to +50 °C
- Dimensions: 174 × 42.5 × 33 mm
- Weight: 190 g
Typical Applications
- Worker safety
- Telecommunications
- Industrial environments
- Railway
- Medical facilities
- Laboratories
- Radar and aerospace
