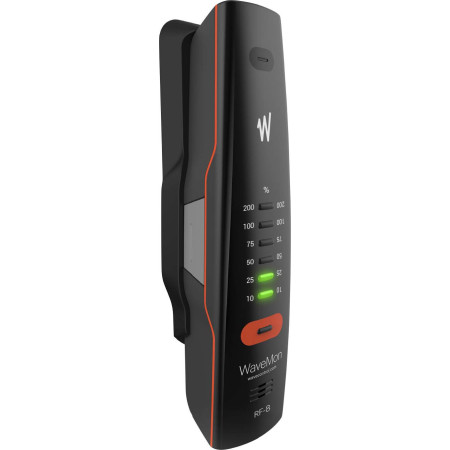

WaveMon RF-8 – Personal RF Exposimeter with Isotropic RMS Sensors up to 8 GHz | WAVECONTROL

The WaveMon RF-8 is a professional personal RF exposimeter designed for occupational electric and magnetic field monitoring up to 8 GHz. It is intended for worker safety applications and supports exposure assessment according to ITU-T K.145.

• Isotropic E- and H-field sensors with RMS diode technology
• Overexposure warning: audible, visual and vibration alarm
• Exposure display: % of the standard
• Integrated data logger for instant and averaged values
• Optional GPS and altimeter for data geolocation

Key Advantages

• Occupational safety compliance: ICNIRP, EU Directive 2013/35/EU, FCC and Safety Code 6
• ITU-T K.145 compliant
• Measurement reliability: Isotropic RMS sensing with defined shaped response
• Extended monitoring capability: > 1 month autonomy (8 h/day, 5 days/week)
• High storage capacity: > 1,000,000 logged events
• Robust construction: IP54 protection
• Flexible wearing options: harness, belt or arm holder

Measurement Methods

• Isotropic RMS diode technology
• Shaped response according to ICNIRP 1998/2020, EU Directive 2013/35/EU, FCC and Safety Code 6
• Two user-adjustable alarm thresholds
• Logging interval: 1 second to 60 minutes (user adjustable)
• Averaging interval: 1 second to 60 minutes (user adjustable)
• Fall detection

Technical Specifications

• Frequency range (depending on version): 300 kHz – 8 GHz / 3 MHz – 8 GHz / 10 MHz – 8 GHz
• Dynamic range: E-field 1 – 300 % / H-field 2 – 300 %
• Linearity: ±0.5 dB (E-field) / ±1 dB (H-field)
• Isotropic deviation: ±1 dB
• LF immunity (50–60 Hz): > 30 kV/m
• Battery: 2 × AA NiMH rechargeable via USB
• Autonomy: > 1 month typical usage
• Protection rating: IP54
• Operating temperature: -20 °C to +50 °C (Charging: 0 °C to +40 °C)
• Dimensions: 174 × 42.5 × 33 mm
• Weight: 190 g
