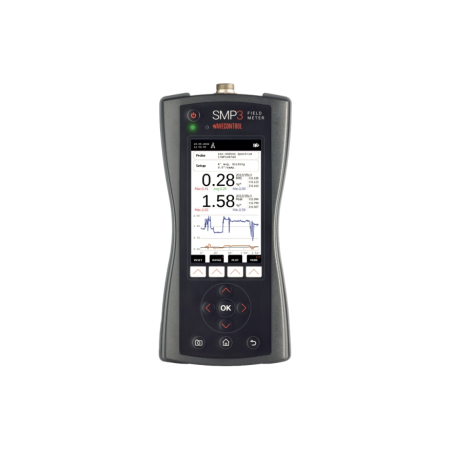

SMP3 – EMF Meter for Broadband and Frequency Selective Measurements up to 90 GHz | WAVECONTROL

The SMP3 is a professional EMF measurement instrument designed for electric and magnetic field assessment from 0 Hz up to 90 GHz (probe dependent). It integrates three measurement functionalities within a single handheld unit: broadband field measurement, FFT-based frequency selective analysis, and static field measurement.

• 3-in-1 measurement platform: Static Field Measurement, Spectrum Analysis (FFT), Broadband Field Meter
• 5G Ready
• Designed for compliance assessment according to ICNIRP, EU Directive 2013/35/EU, FCC and SC6 (2015)
• Real-time exposure limit comparison

Key Advantages

• Regulatory compliance support: Suitable for occupational EMF assessment in accordance with international standards
• Measurement reliability: Field probes individually calibrated under ISO 17025 accreditation
• Investment protection: Frequency coverage up to 90 GHz, suitable for current and emerging 5G deployments
• Operational efficiency: Consolidates three measurement methods into one instrument
• Field usability: Automatic probe detection (Plug & Play) and structured menu navigation
• Extended monitoring capability: > 24-hour battery autonomy
• Data traceability: Integrated SQL database with > 1 million stored samples and optional GPS tagging
• System flexibility: Compatible with a wide range of E-field and H-field probes

Measurement Methods

• Broadband measurement: 0 Hz – 90 GHz (depending on probe)
• FFT-based frequency selective analysis: 1 Hz – 10 MHz
• Weighted Peak Method (WPM): 1 Hz – 10 MHz for direct exposure limit assessment
• Automatic probe recognition (Plug & Play)
• Display of X, Y, Z components and total field values

Technical Specifications

• Measured quantities: E-field and H-field
• E-field units: V/m, kV/m, µW/cm², mW/cm², W/m², %
• H-field units: nT, µT, mT, T, A/m, mG, G, %
• Memory capacity: > 1 million samples (SQL database)
• Logging interval: configurable from 0.5 s to 6 min
• Display: Color TFT, 480 × 272 pixels
• Interfaces: USB-C, Digital Output
• Optional: Fibre optics interface, integrated GPS (u-blox 8)
• Battery: Internal Li-ion, > 24 h autonomy
• Operating temperature: -10 °C to +50 °C
• Dimensions: 100 × 215 × 40 mm
• Weight: 560 g – 635 g

Probe Compatibility

Compatible with isotropic RMS field probes supplied with individual ISO 17025 accredited calibration.

• WPF Series: 100 kHz – 90 GHz (E-field)
• WP Series: 1 Hz – 10 MHz (E- and H-field, WPM capable)
• WPH Series: DC – 1 GHz (H-field)

Typical Applications

• Occupational EMF exposure assessment
• Compliance measurements according to EU Directive 2013/35/EU
• 5G site evaluation
• Telecommunication infrastructure
• Energy and substation environments
• Industrial and laboratory environments
• Automotive and railway applications
• Radar and aerospace installations

Scope of Delivery & Options

Included:

• Carrying case
• USB cable (USB to USB-C)
• AC/DC charger
• “SMP3 Reader” PC software

Optional:

• Fibre optics interface (10 m / 20 m / 45 m)
• GPS module
• Tripod solutions and extensions
• SMP3-Streamer option
• Protective and transport accessories
