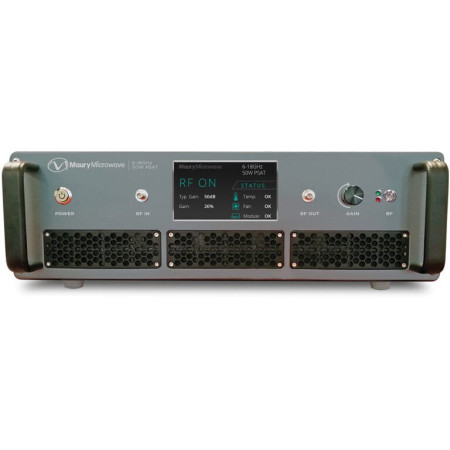

The Maury Microwave EMC-MPA amplifiers provide power amplification in EMC immunity test setups. The series includes different frequency bands and power levels; an individual model does not cover the entire product family.

Advantages

  • Solid-state technology for EMC test setups
  • Selection by frequency band and required output power
  • Remote-controlled configurations for test systems

Key features

  • Signal operation: CW, pulsed and modulated signals according to the model configuration
  • Comparison values: Psat is the output power at saturation
  • MPA-0G6-6G-100: TCP/IP and RS-485 remote control; MPA-COUP forward/reflected power measurement is optional
Example models Frequency range Minimum Psat
MPA-0G6-6G-100 0.6–6 GHz 100 W
MPA-2G-18G-50 2–18 GHz 50 W
MPA-6G-18G-100 6–18 GHz 100 W

Typical applications

  • Generating RF test levels for radiated immunity measurements
  • Development and standards-based EMC test setups

Additional information

Psat is not a guaranteed linear output power. Amplifier, antenna, cable losses and modulation requirements must match the setup. Suitability for a specific standard must be assessed against the complete test requirements. EMCO assists with selection.
