Pyramidal Standard Gain Horn Antenna : 3160 | ETS-Lindgren

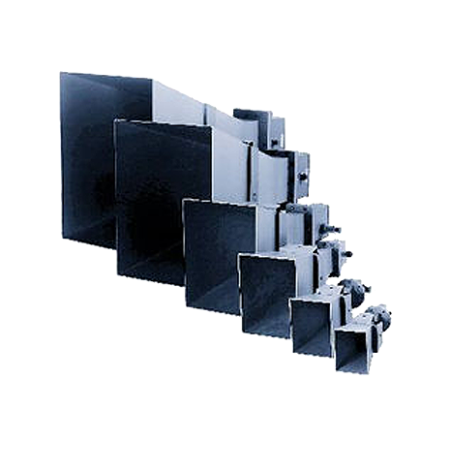

The ETS‑Lindgren Model 3160 Pyramidal Standard Gain Horn Antenna covers a multi‑octave bandwidth from 1 GHz to 40 GHz. It features medium gain, linear polarization, low VSWR, and consistent antenna factor across the entire range.

Benefits :

• Constant antenna factor over the full frequency range
• Directional linear polarization for precise EMC reference measurements
• Uniform medium gain with ±0.5dB accuracy between measured and computed values
• Includes feed, waveguide flange, and mounting bracket
• Capable of handling high power inputs safely

Key Features :

• Frequency range: 1 GHz – 40 GHz
• Maximum continuous power: up to 550 W (serial models 3160‑01, ‑02, ‑03)
• Antenna factor: varies by model between ~15.4–43.5dB (1/m)
• Gain (typical): 16.5–17.0dBi depending on sub‑model
• Beamwidth (E/H planes): ~26°–27°
• Connector type: TypeN female
• Waveguide types: WR‑770 through WR‑28, depending on frequency
• Construction: Includes coaxial feed, flanged waveguide and mounting bracket
• Mounting: Bracket with standard ¼‑20 tripod thread

Typical Applications :

• EMC radiated emissions and immunity testing above 1 GHz
• Used as reference standard horn antenna per ANSI C63.4

Further Information :

• Higher power handling possible by direct waveguide flange mounting
• Optimal half‑power beamwidth in both horizontal and vertical planes
• Equipped for long-term use in test labs and chambers
