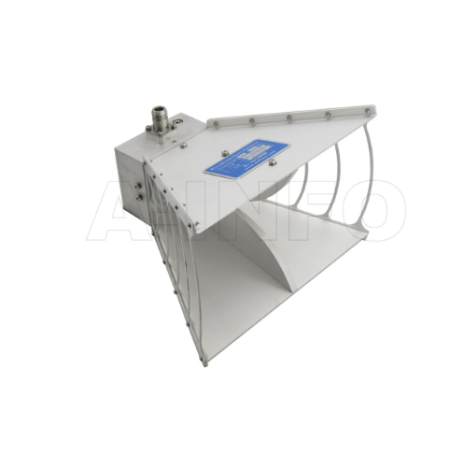

Antenna – Broadband Horn: A-INFO WR-90 to WR-10 Series | A-INFO

AINFO’s broadband horn antennas are precision-engineered for wideband applications across microwave and millimeter-wave frequencies. These antennas offer stable gain, low VSWR, and excellent polarization purity, making them ideal for EMC testing, antenna calibration, and radar systems.

Advantages:

• Wide frequency coverage (e.g., 8.2–12.4 GHz to 75–110 GHz)
• Stable gain across the band
• Low VSWR for efficient power transfer
• Linear polarization
• Rugged aluminum construction
• Calibration data available

Key Features:

• Frequency Range: Model dependent (e.g., WR-90: 8.2–12.4 GHz)
• Gain: Typically 10–20 dBi
• VSWR: ≤ 1.25
• Polarization: Linear
• Connector: Standard waveguide flange (e.g., UG-39/U)
• Material: Aluminum alloy with corrosion-resistant finish
• Mounting: Tripod or custom fixture compatible

Typical Applications:

• EMC and EMI testing
• Antenna pattern measurements
• Radar and communication systems
• Laboratory and R&D environments

Additional Information:

• Manufacturer: AINFO Inc.
• Custom frequency bands and gain levels available
• Calibration service upon request
