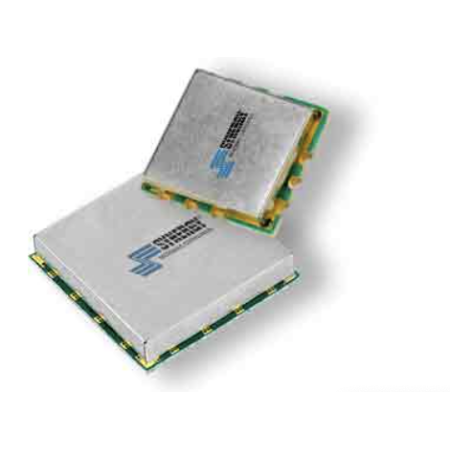

SAW Oscillator – 800 MHz, High Performance: HFSO800-5H | Synergy Microwave Corporation

The HFSO800-5H is a high-performance Surface Acoustic Wave (SAW) oscillator developed by Synergy Microwave. Operating at 800 MHz, it offers ultra-low phase noise and is designed for applications requiring high spectral purity and stability. Its compact surface-mount package and robust design make it ideal for integration into demanding RF systems.

Benefits :

• Exceptional phase noise performance: -150 dBc/Hz at 10 kHz offset
• Compact and lead-free surface-mount package
• Low power consumption
• High reliability for mission-critical applications
• Customizable to meet specific system requirements

Key Features :

• Center Frequency: 800 MHz
• Phase Noise: -150 dBc/Hz @ 10 kHz offset
• Tuning Voltage: 12 V max
• DC Bias: 5 VDC
• Max Current: 20 mA
• Package Type: Surface-mount
• Technology: REL-PRO® patented SAW design
• RoHS Compliant: Yes

Typical Applications :

• Military and aerospace communication systems
• Industrial RF systems
• Medical instrumentation
• Test and measurement equipment
• Wireless infrastructure

Additional Information :

• Custom frequency options available upon request
• Designed and manufactured in the USA
• Compatible with automated assembly processes
• Long-term supply assurance for OEMs
