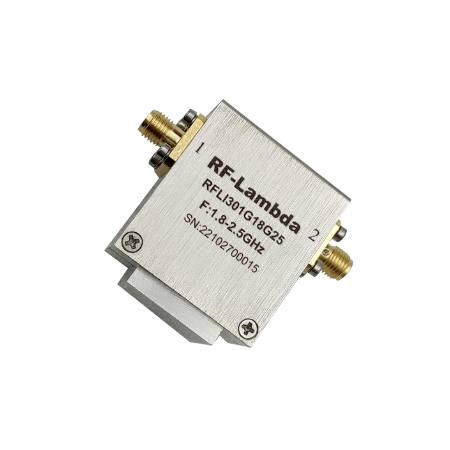

Isolators – Coaxial and Drop-In: RF-Lambda | RF-Lambda

RF-Lambda offers a wide range of coaxial and drop-in isolators designed to protect RF systems from unwanted signal reflections. These components ensure signal integrity by providing high isolation and low insertion loss across a broad frequency spectrum, from 100 MHz to over 40 GHz.

Benefits :

• Prevents signal reflection and protects sensitive components
• Wide frequency coverage from UHF to millimeter-wave bands
• High isolation up to 40 dB
• Low insertion loss (as low as 0.3 dB)
• Available in coaxial and drop-in formats
• High power handling (up to 200 W)
• Compact and rugged construction

Key Features :

• Frequency range: 0.1 GHz to 40+ GHz
• Isolation: typically 15–40 dB
• Insertion loss: typically 0.3–1.5 dB
• Power handling: up to 200 W
• Connector types: SMA, N-type, 2.92 mm
• Drop-in options for PCB integration
• Operating temperature: -40 °C to +85 °C
• Custom models available upon request

Typical Applications :

• RF and microwave communication systems
• Radar and electronic warfare platforms
• Test and measurement setups
• Satellite and aerospace systems
• Signal routing and protection in high-frequency circuits
