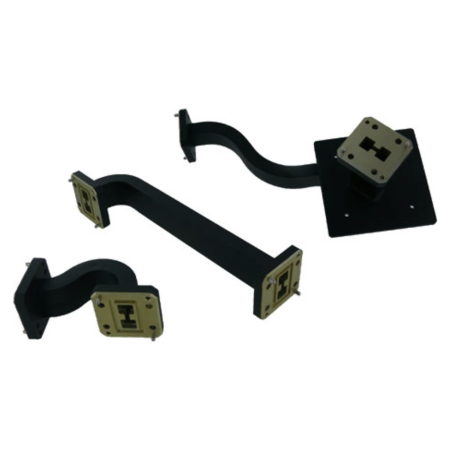

Double Ridge Waveguide – Modular, Precision-Engineered Assemblies: Apollo Microwave | Apollo Microwaves
Apollo Microwave’s Double Ridge Waveguide product line includes a wide variety of components and assemblies designed for high-performance RF and microwave systems. These waveguides are manufactured with tight tolerances and precision machining, ensuring excellent electrical performance and mechanical durability. Available in multiple configurations, they support frequencies from 2 to 40 GHz.
Apollo Microwave’s Double Ridge Waveguide product line includes a wide variety of components and assemblies designed for high-performance RF and microwave systems. These waveguides are manufactured with tight tolerances and precision machining, ensuring excellent electrical performance and mechanical durability. Available in multiple configurations, they support frequencies from 2 to 40 GHz.
Benefits :
- Wide frequency range: 2 to 40 GHz
- Lightweight and durable 6061 aluminum construction
- Excellent electrical performance with low insertion loss
- Modular design for flexible system integration
- In-house tuning and testing for guaranteed performance
- Custom configurations available
Key Features :
- Waveguide sizes: WRD-180 to WRD-200
- Component types include:
- Straight waveguides
- E-Bends and H-Bends
- Twists
- Pressure windows and inlet units
- Drain units
- Quick connect/disconnect assemblies
- Precision waveguide-to-coaxial adapters
- High-power and low-power variants
- Designed for rugged environments and long-term reliability
Typical Applications :
- Satellite communication systems
- Radar and electronic warfare platforms
- RF test and measurement setups
- Aerospace and defense subsystems
- High-frequency signal routing in compact systems
Additional Information :
Apollo Microwave offers both standard and custom double-ridge waveguide components.
