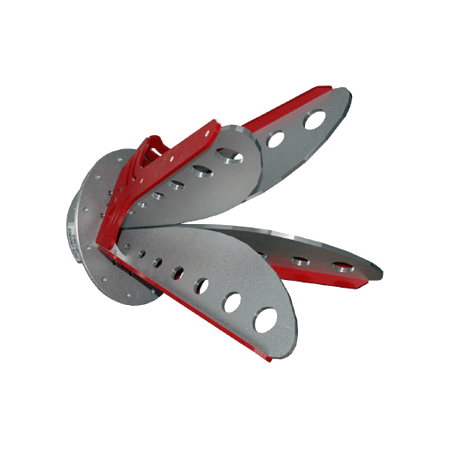

Wideband antennas – EMC & RF testing 9 kHz–40 GHz: ETS-Lindgren | ETS-Lindgren
ETS-Lindgren provides a comprehensive portfolio of precision antennas for EMC compliance, RF measurements, and wireless device testing. Covering bands from 9 kHz to 40 GHz depending on the model, these antennas enable accurate emissions and immunity tests in anechoic chambers, OATS and lab environments, aligned with CISPR, IEC 61000 and MIL-STD-461.
ETS-Lindgren provides a comprehensive portfolio of precision antennas for EMC compliance, RF measurements, and wireless device testing. Covering bands from 9 kHz to 40 GHz depending on the model, these antennas enable accurate emissions and immunity tests in anechoic chambers, OATS and lab environments, aligned with CISPR, IEC 61000 and MIL-STD-461.
Advantages
- Wide frequency coverage — from LF magnetic loops to mm-wave horn antennas.
- Low VSWR and stable gain across the operating band.
- Multiple polarisations — linear, dual-polarised and omni-directional.
- Precision calibration with supplied data and 3D patterns.
- Rugged, lightweight mechanics for reliable daily use.
- Seamless integration with chambers, positioners and field probes.
Main Features
- Frequency span per family: Biconical & BiConiLog, LPDA, double-ridged horns, standard gain & octave horns, loops, dipoles, monopoles.
- Models with integrated preamplifier available.
- Cal data supplied; compliant with CISPR 16, IEC 61000-4-3, MIL-STD-461.
- Accessories for mounting, alignment and polarisation control.
Typical Applications
- EMC emissions and immunity testing.
- Reference measurements in calibration labs.
- Antenna pattern characterisation and wireless R&D.
- Field strength generation in anechoic chambers.
Additional Information
As your German distributor, EMCO Elektronik supports antenna selection, provides calibration & maintenance, and assists with system integration for EMC and RF test benches. Popular references are available with short lead times.
Representative ETS-Lindgren Series
| Series / Model | Frequency Range | Polarisation | Typical Application |
|---|---|---|---|
| 3142E BiConiLog | 26 MHz – 3 GHz | Linear | Emissions & immunity (hybrid biconical/LPDA) |
| 3117 Double-Ridged Horn | 1 GHz – 18 GHz | Linear | EMC & microwave measurements |
| 3160 Standard Gain Horn | 1 GHz – 40 GHz | Linear | Reference gain and field generation |
| 3121D Tuned Dipole | Band-specific | Linear | Reference measurements, site validation |
| 6511 Shielded Loop | 20 Hz – 5 MHz | Magnetic | LF magnetic field measurements |
